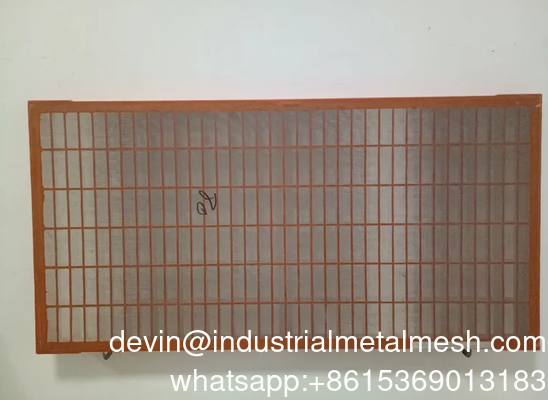

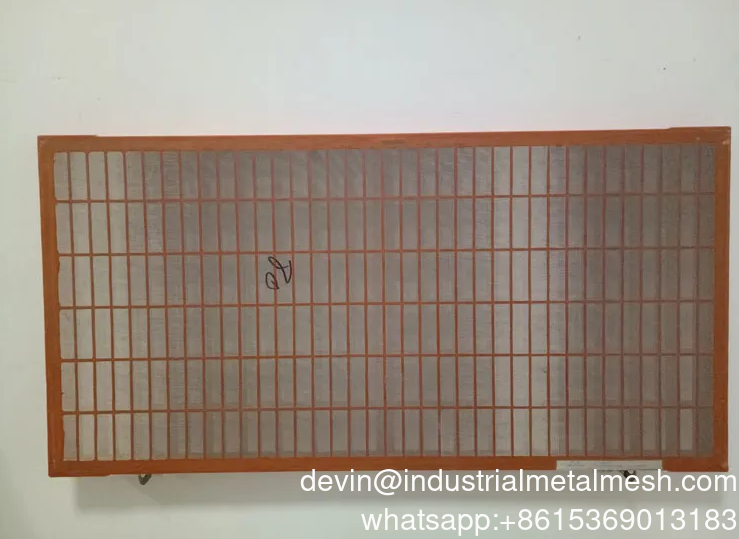

Flat Shale Shaker Screens for Oilfield Vibrating Screening

SS316 Shale Shaker Screen / Oil Vibrating Sieving Mesh are the series applied most widely at present. These products can be fit for all kinds of shale shakers that use the hookstrip flat screen. This screen panel is constructed with two or three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be inserted to the rips or tears of the screen. By doing this, we can cut down time and the production cost. We can supply hookstrip flat screens with mesh sizes ranging from 20 to 325.

Features of SS316 Shale Shaker Screen / Oil Vibrating Sieving Mesh:
1)Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better. Screen with different mesh counts with suitable opening sizes of the backing plate. Doing so, our products will obtain the largest effective area under the condition of enough strength.
2)The bottom layer with low mesh counts has coarse wire and can be tight bonded to the backing to make up one block. So the strength of whole screen mesh get up and the useful life is increased
3) The mesh, divided into many independent small units by grids of the backing plate, can prevent rigs of tears from spreading overmuch. Accessory prepared rubber stoppers can be used to repair damages. By doing so, the operator can cut down the stop time and reduce the cost.

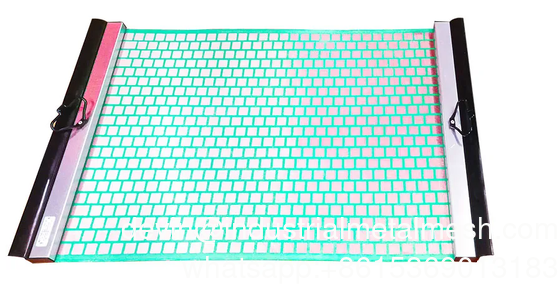

Composite screen(Shale Shaker Screen)
Composite screen is made by composite plastic frame and stainless steel wire mesh, because the composite plastic material itself has great toughness, plasticity so could increase of service life.
