| 와이어 직경: | 2.5mm | 메쉬 오프닝: | 20x20mm |
|---|---|---|---|
| 크기: | 폭 2.10m x 길이 30m | 이름: | 알루미늄 주름을 잡은 철망사 |
| 와이어 재료:: | 알루미늄 와이어 | 전반적 사용 :: | 상영 |
| 이메일: | devin@industrialmetalmesh.com | 왓츠앱: | +8615369013183 |
| 강조하다: | stainless steel mining wire mesh,custom crimped mining screen,steel mining mesh with warranty |
||

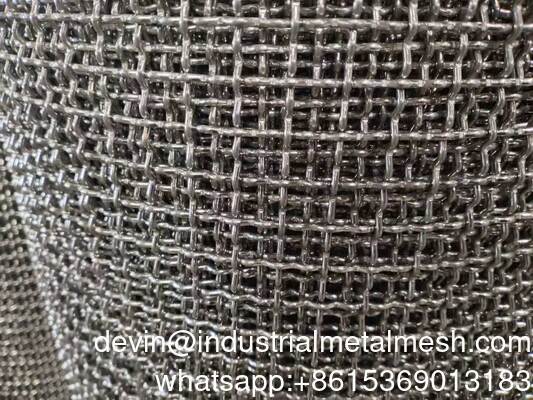

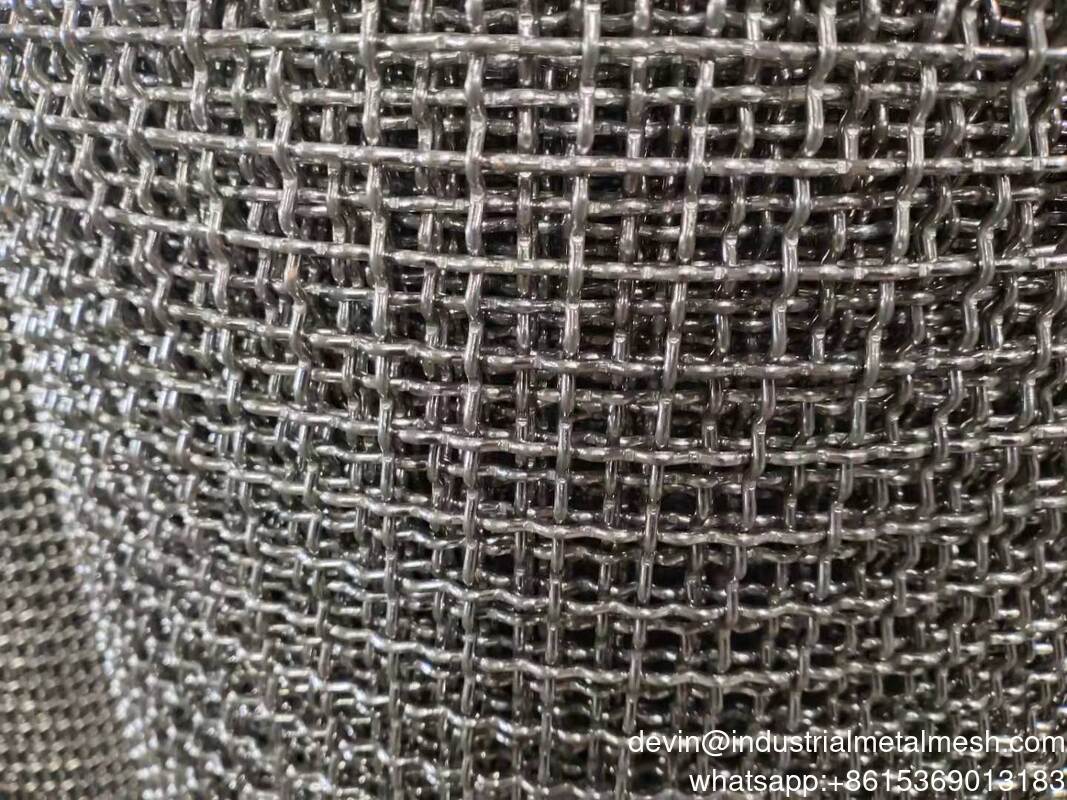

Customized Stainless Steel Crimped Mining Wire Mesh
Crimped woven wire mesh is made of high quality carbon steel wire, stainless steel wire, galvanized steel wire, spring steel, copper wire, brass wire and other non ferrous metals, through crimping mesh machine, a kind of universal wire product with accurate & consistent Square & Rectangular openings. It has various weaving method, such as the double crimped, flat top crimped, intermediate crimped and lock crimped. The crimped woven wire mesh has square opening and rectangle opening, which has different wire diameters and applications.
Crimped wire mesh,is made of carbon iron wire,galvanized wire,stainless steel wire or copper wires. All the wires are crimped prior by mold,then weave them together. The variety of materials,wire diameters and weave patterns make this kind wire mesh products can be used in many industries.
1.Material:
1) Stinless steel wire(201,202,302,304,304L,310,316,316L) , Steel Wire.
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.

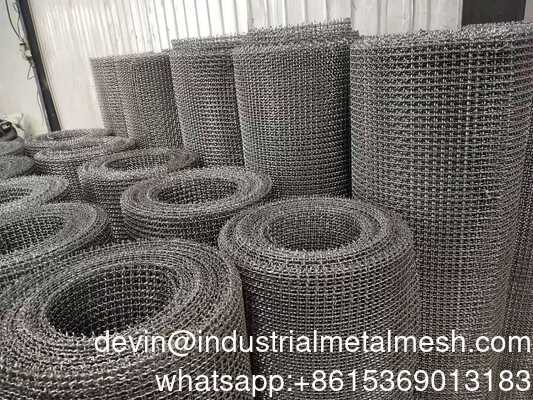

3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney
fittings.
5.Type of weaving:
crimped before weave,double-direction separate,ripples flections,tight lock flections,flattop flections,double-direction flections,list-direction separate ripples flections.
| Product Name | 2 4 5 6 8 mesh 304 316 stainless steel crimped wire mesh for mining |
| Material | SS 304, 304L, 316, 316L, 430, 904 and 904L and other special materials. |
| Weave type | Double Crimp, Lock Crimp, Flat - Top |
| Roll size | Roll Width:0.914m,1.0m,1.22m,1.5m.3.0m Roll Length:15m,30m, other require can be customized |
| Wire Diameter | 0.5mm, 0.8mm, 1mm, 1.2mm, 1.4mm, 1.8mm, 2mm, 2.5mm etc. All can be customized. |
| Application | screening and filtering , widely used in mine, oil, chemical industry, food industry, pharmaceutical industry and machine-making, etc |
|
CRIMPED WIRE MESH
|
|
|
Material
|
carbon steel wire, galvanized wire, stainless steel wire, copper wire, brass wire
|
|
Weave type
|
Plain crimped, Intermediate crimped, Lock crimped, Flat Top crimped
|
|
Mesh size
|
* Diameter 1.0mm x mesh opening 8mm, 10mm.
* Diameter 1.5mm x mesh opening 6mm, 12.5mm, 19mm or 25.4mm
* Other details according your request
|
|
Width
|
0.914mm, 1mm, 1.2mm, 1.5mm or as your request
|
|
Length
|
15m, 20m, 30m or as your request
|
|
Crimped wire mesh is available in a variety of materials,wire diameter,meshes,weave methods and can be cut to the special sheets according to the applications and projects requirements.
Crimped wire mesh has many applications in industrial,commercial and decoration. like refining, mining,construction,security,food processing,sieves,decoration and so on.
Mining areas
Chemical Industries
Food Industries,
Filtration,
sifting,
sizing
Marine uses
Faucet screen
Pharmaceutical Industries
Insect screen
Insect screen in a marine environment
CRT screen ,
High transparency grade
Decorative / Craft
Applications Sconces
