제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 스테인레스 스틸 와이어 | 유형: | 크림프 와이어 메쉬 |
|---|---|---|---|
| 애플리케이션: | 짠 와이어 메쉬 | 직조 스타일: | 평직 |
| 기술: | 짠 | 모델 번호: | 진동 스크린 망 |
| 가공 서비스: | 벤딩, 용접, 디코일링, 커팅, 펀칭 | 배달 시간: | 31-45 일 |
| 표면 처리: | 활성화되거나 페인트 칠해지. | 메쉬 크기: | 1 밀리미터 - 100 밀리미터. |
| 구멍 유형: | 정사각형, 직사각형 및 긴 슬롯. | 개구부 크기: | 2.0 - 80.0 밀리미터 |
| 와이어 직경: | 0.8 - 8mm | 너비: | 1.2m |
| 길이: | 30m | 훅: | 강철 시트와 훅 |
| 후크 정도: | 60Degree | 직조 유형: | 이중 압착 |
| 이메일: | devin@industrialmetalmesh.com | 왓츠앱: | +8615369013183 |
| 강조하다: | Manganese vibrating screen mesh,Wear-resistant mining screen mesh,Durable vibrating screen mesh |
||

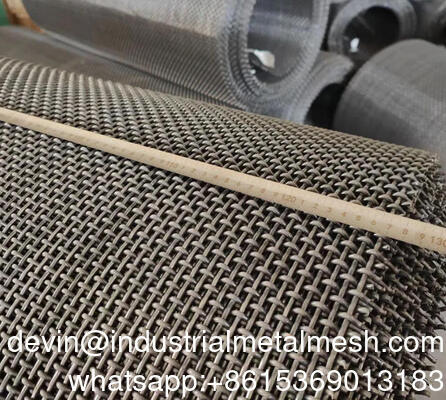

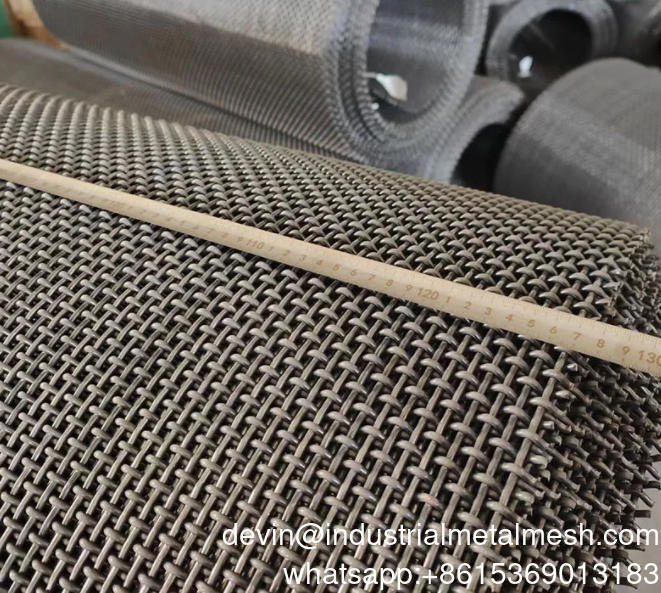

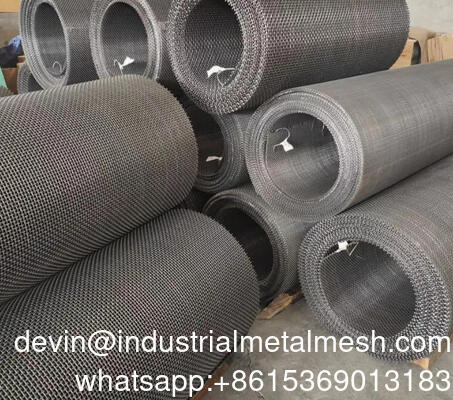

High Quality Manganese Wear-Resisting Vibrating Screen Mesh
| Products | 65MN crimped wire mesh screen (45#,50#,55#,60#,70#, and 72A material grade also can be made) | |
| Feature | 65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying, and aggregating industries. Compared with carbon steel,45#,50#,55#,60#,70#, and 72A material grade, 65mn Material has the highest Manganese content and high carbon, which lets it have High Wear resistance and Tensile strength. Stainless steel is also a fine material, but the price is too expensive for batch quantity uses. So 65mn crimped wire mesh is a great screen for the mining, quarrying, and vibrating industry. | |
| Material grade | 65Mn Steel | |
| Aperture/opening | 1.0mm-150mm | |
| Wire diameter | 0.5-12.7mm | |
| standard sheet size | 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm. | |
| Weaving type | Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommended for Mining Screen Usage | |
| Width | width up to 6 meters | |
| Length | length up to 100 meters. | |
| surface finish | Mill finish, Anti-rust oil spraying, PVC coating | |
| Application | Heavy Screening & Sieving Of Coal Mines. Stone Quarry Works Wire Mesh For Pig Breeding Coal Mine Cement Plant The Cement Factory Petroleum Glass Factory Hardware Products |
|
| Standards | Material GBT 1222-2016 Quality GBT 13307-2012 GBT 13307-2012 ISO 4783-3 |
In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.
| MATERIALS & PARAMETERS |
| Grade | Chemical Composition(%) | ||
| C | Si | Mn | |
| 45 | 0.42-0.50 | 0.52-0.60 |
0.50-0.80 |
| 50 | 0.47-0.55 | ||
| 55 | 0.52-0.60 | ||
| 60 | 0.57-0.65 | ||
| 65 | 0.62-0.70 | ||
| 70 | 0.67-0.75 | ||
| 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 72A | 0.15-0.75 | 0.15-0.75 | 0.30-0.60 |
| Grade | Chemical Composition(%) | |||
| C | Si | Mn | Cr | |
| 304 | ≤0.08 | 8.0-10.5 | ≤2.0 | 18.0-20.0 |
| 321 | ≤0.08 | 9.0-12.0 | ≤2.0 | 17.0-19.0 |
| 316 | ≤0.08 | 10.0-14.0 | ≤2.0 | 16.0-18.0 |
| 2205 | ≤0.03 | 4.5-6.5 | ≤2.0 | 21.0-23.0 |
| 2207 | ≤0.03 | 6-8 | ≤1.2 | 24.0-26.0 |
