제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 폴리우레탄 | 두께: | 30mm |
|---|---|---|---|
| 구멍 모양: | 육각형 | 직조 유형: | 평직 |
| 기술: | 폴리우레탄 | 구멍: | 30mm |
| 이메일: | devin@industrialmetalmesh.com | 왓츠앱: | +8615369013183 |
| 강조하다: | 0.4mm slot wedge wire screens,Johnson well screens mining mesh,welding profile wire panel screens |
||

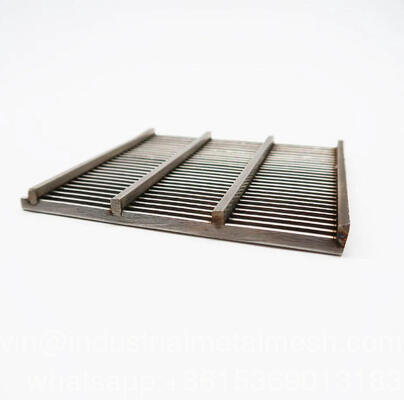

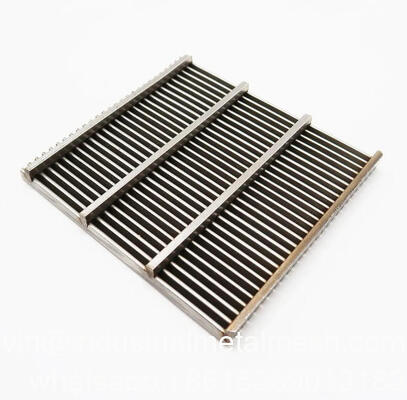

0.4mm Slot Johnson Wedge Wire Welding Screens Profile Wire Panel Screens Johnson Well Screens
Wedge wire is known as profile wire screen, V- wire screen, and wedge wire screen. It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods. Each intersection of the profiles wire and support rod is well welded. It has a smooth surface, resistant to clogging and a greater structural strength. Welded wedge wire screen is the most advanced product of modern technology used in many industries for screening, filtration, dewatering, drying and cleaning. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design a screen according your required specification.
Feature
Wedge Wire Screen Types:
| Material | 304, 302, 304L, 316, 316L stainless steel wire, Duplex SS, Supper Duplex SS |
| Filtration rate | 15-800μm |
| OD | 25.4-1200mm |
| Slot | 0.1mm-45mm |
| Wire | 2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm |
| Rods | 3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50 |
| Height | 6-40 mm |
