제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 탄소강, 알루미늄, 스테인레스 강, 아연도강 | 유형: | 플랫테네드는 확대되었습니다 |
|---|---|---|---|
| 애플리케이션: | 프로텍이트링 스크린, 장식적 메쉬 | 처리: | 누르기 |
| 시트 너비: | 0.5m-2.5m | 시트 길이: | 필요에 따라 |
| 구멍 모양: | 다이아몬드, 스퀘어, 6 각형이, 벌집형이, 양산, 바이킹, 네트워크, 갈라스리 ect. | 이름: | 팽창 강철 메쉬 |
| 이메일: | devin@industrialmetalmesh.com | 왓츠앱: | +8615369013183 |
| 강조하다: | PVC powder coating expanded metal mesh,galvanized expanded metal wire mesh,decorative expanded metal mesh manufacture |
||

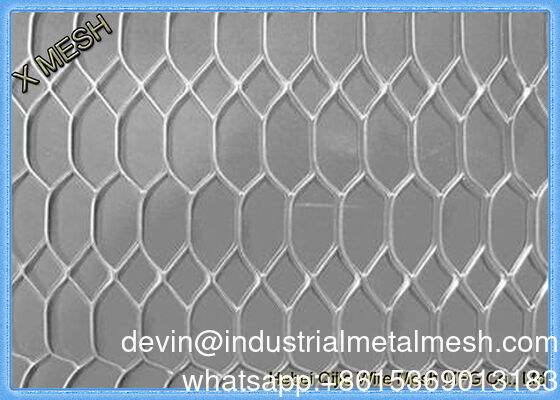

PVC Powder Coating Expanded Metal Mesh ISO Galvanized Expanded Metal Wire Mesh Decorative Mesh Manufacture
Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press, and the sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.
Expanded metal mesh is a very economical and practical way to assure strength and safety, so it has a wide range of applications like EMI/RFI shielding, furniture, security walls, protection cover, floors and doors, and fencing, etc.
Amber wire mesh offers Standard Expanded Metal Mesh and Flattened Expanded Metal made from a wide range of materials including carbon steel sheet, stainless steel sheet, aluminum sheet, brass sheet and copper sheet, etc.
We also provide Expanded Metal Grating made from carbon steel plates for heavy-duty applications, which is more stronger and durable.
| Product Name | Expanded Metal Mesh |
| Size |
1)Wire Diameter: 2.5-8.0mm 2)Width: 1-30mm 3)Aperture: 2.0-50mm 4)Mesh Length: 1-10m 5)Mesh Width: 0.5-2m 6)LWD: 4.5-100mm 7)SWD: 2.5-550mm 8)Sheet Thickness: 0.5-8mm |
| Hole Shap | Diamond, square hole scale hole |
| Surface Treatment | Electric galvanized, Hot dipped galvanized, PVC coated, oxidation treatment etc |
| Characteristics | Corrosion resistance, ageing resistance, durable, etc. |
| Packing |
1.LCL: packed with plastic film then on the pallets 2.FCL: Nude packing |
| Payment Terms | T/T( 30% deposit , 70% balance against BL copy ), or L/C, Paypal, Western Union,MoneyGram, Credit Card ,OA |
The expanded metal mesh also called expanded metal or expanded metal sheet, it is one of the most widely used metal wire mesh products. The expanded metal mesh is produced of whole metal sheet by punching and expanding process, the material of expanded metal mesh can be stainless steel, carbon steel, galvanized steel or aluminum. The mesh holes of expanded metal mesh is uniform, and the mesh structure is firm and stable, this makes the mesh achieve very high strength with light weight.
expanded metal mesh has very wide applications, the standard grade can be used as mechanical equipment protection shell, handicraft manufacturing, speaker cover net, highway guardrail, green belt protection, etc. Heavy grade expanded metal mesh can be used as pedal net in heavy machinery and boiler, mine, locomotive and ship working platform. Also expanded mesh can be used in industry, railway, shipbuilding, coal, light industry, textile, building materials, agriculture and sideline industry, breeding industry, landscape, mineral, petrochemical, household appliances, and also used in integrated ceiling, doors and windows,security channel, corridor, stair baffle, tables, chairs, benches, vents, various cargo bearing frames, shelves, etc.
|
Mesh thickness(mm)
|
Distance short(mm)
|
Distance long(mm)
|
Strip(mm)
|
Width (m)
|
Length(m)
|
Weight(kg/m2)
|
|
0.5
|
2.5
|
4.5
|
0.5
|
0.5
|
1
|
1.8
|
|
0.5
|
10
|
25
|
0.5
|
0.6
|
2
|
0.73
|
|
0.6
|
10
|
25
|
1
|
0.6
|
2
|
1
|
|
0.8
|
10
|
25
|
1
|
0.6
|
2
|
1.25
|
|
1
|
10
|
25
|
1.1
|
0.6
|
2
|
1.77
|
|
1
|
15
|
40
|
1.5
|
2
|
4
|
1.85
|
|
1.2
|
10
|
25
|
1.1
|
2
|
4
|
2.21
|
|
1.2
|
15
|
40
|
1.5
|
2
|
4
|
2.3
|
|
1.5
|
15
|
40
|
1.5
|
1.8
|
4
|
2.77
|
|
1.5
|
23
|
60
|
2.6
|
2
|
3.6
|
2.77
|
|
2
|
18
|
50
|
2.1
|
2
|
4
|
3.69
|
|
2
|
22
|
60
|
2.6
|
2
|
4
|
3.69
|
|
3
|
40
|
80
|
3.8
|
2
|
4
|
5.00
|
|
4
|
50
|
100
|
4
|
2
|
2
|
11.15
|
|
4.5
|
50
|
100
|
5
|
2
|
2.7
|
11.15
|
|
5
|
50
|
100
|
5
|
1.4
|
2.6
|
12.39
|
|
6
|
50
|
100
|
6
|
2
|
2.5
|
17.35
|
|
8
|
50
|
100
|
8
|
2
|
2.1
|
28.26
|
Packaging Details
Steel pallet and waterproof plastic
wooden case
One 20 feet container can load:
Black steel perforated metal approximate 20-23 tons
Aluminum perforated metal mot in 10-17 tons
Every two pieces should put one paper to protect the surface.
Port
TIANJIN
Lead time:
| Quantity(pieces) | 1 - 100 | 101 - 5000 | 5001 - 10000 | >10000 |
| Lead time (days) | 7 | 15 | 20 | To be negotiated |
