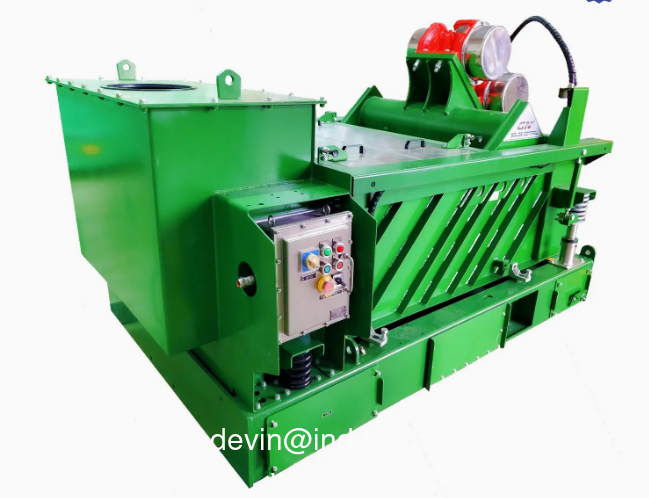

큰 이미지 : Onshore Drilling Waste Management Multi-Deck Screening Adjustable Screen Settings

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	qijie
인증:	SGS
모델 번호:	천공 기계

결제 및 배송 조건:

최소 주문 수량:	1세트
포장 세부 사항:	대부분
배달 시간:	15~18일
지불 조건:	L/C, T/T, 웨스턴 유니온
공급 능력:	1 세트/월

상세 제품 설명

천공 기계

고속 펀칭기

펀치 형상:

폐쇄형 펀치

강조하다:

onshore drilling waste management screen

multi-deck screening wire mesh machine

adjustable screen settings wire mesh

Onshore Drilling Waste Management Multi-Deck Screening Adjustable Screen Settings

Product Description

Shale shaker is the ideal and effective first phase solid control equipment in high-capacity treating drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system.

Shake shalker is used to separate a large number of drill cuttings carried by the mud from the well brief so that the mud enters the second level of separation equipment. its easy to maintain, the single side screens tension system make it easy to change the screens.

Shale shakes are widely used in oil and gas drilling, CBM drilling, geothermal drilling, drilling waste management, river silt treatment, and the modern trenchless infrastructure construction, including tunneling, micro-tunneling, pipe-jacking, bored piles construction, piling construction and diaphragm wall construction., etc.

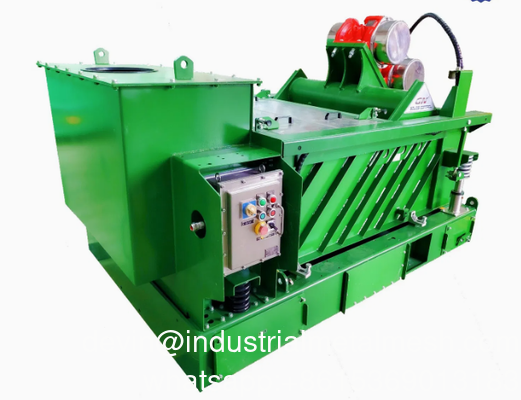

Onshore Drilling Waste Management Multi-Deck Screening Adjustable Screen Settings 0

A drilling fluids shale shaker is a vital piece of equipment in the drilling industry, used to remove solids from drilling fluid. During the drilling process, the drilling fluid or mud is circulated downhole through the drill bit and up the annulus, carrying drill cuttings and other debris. The drilling fluids shale shaker is a crucial component that separates the solids from the fluid, ensuring the quality of the drilling fluid and the efficiency of the drilling process.

Onshore Drilling Waste Management Multi-Deck Screening Adjustable Screen Settings 1

Shale Shaker Technical Parameters
Model	GNZS752K	GNZS594K	GNZS595K	GNZS596K
Vibration Model	Linear Motion	Linear Motion	Linear Motion	Linear Motion
Reference Capacity	45m3/h(200GPM)	140m3/h(616GPM)	175m3/h(770GPM)	140m3/h(616GPM)
Vibration Motor	2×1.0kW	2×1.94kW	2×1.94kW	2×2.2kW
Screen Qty	2pcs	4pcs	5pcs	6pcs
Screen area	1.35m2	2.73m2	3.41m2	Top Deck:1.36m2 Bottom Deck:2.73m2
Adjust G Force	≤7.5G	≤7.5G	≤7.5G	≤7.5G
Vibration Amplitude	4.14~5.96mm	4.14~5.96mm	4.14~5.96mm	4.14~5.96mm
Deck Angle Range	+2°	-1~+5°(Adjustable)	-1~+5°(Adjustable)	-1~+5°(Adjustable)
Feeding Type	Weir Feeder	Weir Feeder	Weir Feeder	Weir Feeder
Weir Height	773mm	958mm	958mm	1038mm
Weight	1166Kg	2138Kg	2337Kg	2428Kg
L×W×H(mm)	2303×1610×1300	2970×1995×1619	3265×1995×1919	2970×1995×1669
Remarks	Above capacity only for reference, actual capacity will be various as per screen API No. and mud conditions
The above specification and parameters for reference only.

The shale shaker uses a vibrating screen to separate the solids from the fluid. The drilling fluids shale shaker offered by GN Solids Control is a high-quality and reliable piece of equipment that can handle high volumes of drilling fluid and effectively remove solids from the fluid. The shale shaker uses a variety of screens to ensure that the solids are separated from the fluid efficiently, leaving the drilling fluid in top condition for the drilling process.

The device is easy to operate and maintain, making it an ideal choice for drilling companies of all sizes. The drilling fluids shale shaker is built to withstand the harsh conditions of the drilling industry and can perform reliably even in the toughest environments.

The drilling fluids shale shaker offered by GN Solids Control is designed with a variety of features that make it a top choice for drilling companies. It has an adjustable deck angle, which allows for fine-tuning of the shaker performance based on the specific drilling conditions. Additionally, the device has a simple and reliable design that ensures easy maintenance and repair, reducing downtime and extending the life of the equipment.

Overall, the drilling fluids shale shaker is an essential piece of equipment for any drilling operation. It helps to maintain the quality of the drilling fluid, which is critical for the success of the drilling process. With the high-quality shale shaker offered by GN Solids Control, drilling companies can be confident in their ability to remove solids from their drilling fluid efficiently and effectively.

Features & Benefits of GN Linear Motion Shale Shaker:ΔThe entire shaker deck undergoes heat treatment to relieve welding stress, enabling it to withstand high G force.
ΔThe shaker screen is installed with a mechanical ratchet wrench gear for quick tightening, facilitating easy disassembly and ensuring long-lasting durability.
ΔThe wedge blocks for tightening the screen mesh are made of nylon, providing high temperature resistance, corrosion resistance, and wear resistance.
ΔVibration motor: Italian OLI brand.
ΔPolyurethane material is used for sealing between the shale shaker and screen, ensuring a long service life and easy replacement.
ΔThe supporting rubber strips for the bottom frame of the vibration screen are made of stainless steel, offering strong corrosion resistance and a long service life.
ΔThe electrical control box is made of aluminum alloy/stainless steel explosion-proof material, ensuring good sealing and strong corrosion resistance.
ΔThe pre-tensioned shaker screen allows for convenient and quick disassembly and replacement.
ΔThe mud outlet can be switched between bottom and side outlets, accommodating flexible installation on site.
ΔThe angle of the shaker deck can be mechanically adjusted while working at both ends , adapting to different processing capacities.

shale shaker screen

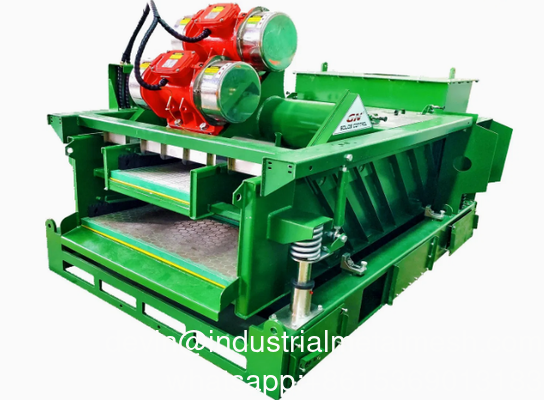

Onshore Drilling Waste Management Multi-Deck Screening Adjustable Screen Settings 3

Onshore Drilling Waste Management Multi-Deck Screening Adjustable Screen Settings 4

Onshore Drilling Waste Management Multi-Deck Screening Adjustable Screen Settings 5
