Certificate Guarantee AISI 321 Woven Wire Mesh Square Hole Stainless Steel Wire Mesh

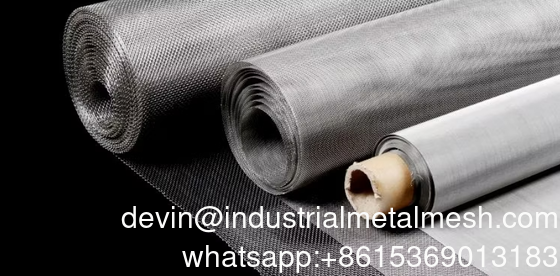

큰 이미지 : Certificate Guarantee AISI 321 Woven Wire Mesh Square Hole Stainless Steel Wire Mesh

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	QIJIE
인증:	ISO9001
모델 번호:	QJ-004

결제 및 배송 조건:

최소 주문 수량:	50롤
가격:	discuss
포장 세부 사항:	요구 사항으로
배달 시간:	15일부터 20일까지 일
지불 조건:	TT/LC
공급 능력:	1주일에 1000개 명부

상세 제품 설명

기술:	짠	재료:	스테인레스 스틸 와이어, 316,304
직조 스타일:	평범한 / 능직	제품명:	케케묵은 4X4 우븐은 100 마이크론 스테인레스 스틸 철망 그물을 가루로 빻습니다
와이어 직경:	요구 사항	너비:	보통 1M
이메일:	devin@industrialmetalmesh.com	왓츠앱:	+8615369013183
강조하다:	AISI 321 stainless steel wire mesh , woven wire mesh square hole , stainless steel woven wire mesh

Certificate Guarantee AISI 321 Woven Wire Mesh Square Hole Stainless Steel Wire Mesh

Stainless steel woven wire mesh is crafted by weaving stainless steel wires to create either square or oblong openings. With properties such as acid and alkali resistance, temperature resistance, and wear resistance, stainless steel woven mesh has become widely utilized across various industries in recent years.

Stainless steel is one of the most commonly used materials for woven wire mesh due to its superior chemical resistance, ability to handle hot or cold liquids, and ease of cleaning. Popular stainless steel grades for producing woven wire mesh include 201/304/304L/316/316L and 430.

Stainless Steel Wire Mesh

Mesh number: 1 mesh--3500 mesh.

Material: SUS302, 201, 304, 304L, 316, 316L, 310, 310S, etc.

Use:

1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries...

Features:
1. Uniform mesh, good production reproducibility;
2. Good resistance to acid, alkali and corrosion;
3. High strength,tensile strength, toughness and wear resistance, long service life;
4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

Product Name	Stainless Steel Weave Wire Mesh
Weaving Process	Plain weave; Twill weave; Five-heddle weave;Plain dutch weave;Twill dutch weave;Reverse Twill dutch weave
Wire diameter	Common:0.2-2.5mm
Mesh Count	Common:1-3500mesh.ect
Width	1m,1.2m,1.5m, other can be customized
Length	30m,60m,other can be customized
Finished product	Regular: roll, can be cut into pieces
Packing	Paper tube, moisture-proof bag, wooden box or pallet packing
Customization	Our factory can design and produce various types of products according to user needs

Chemical composition of 316L stainless steel wire cloth(%)

C ≤	Si ≤	Mn ≤	P ≤	S ≤	Cr	Ni	Mo
0.03	1.00	2.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0

Various standards of stainless steel 316L wire mesh

AISI	UNS	DIN	JIS	GB/T
316L	S31603	1.4404	SUS 316L	022Cr17Ni12Mo2

Key properties of ss316 wire mesh

Material	SUS 316L stainless steel wire
Color	Silver
Weave type	Plain dutch weave, Twill dutch weave and crimped
Mesh count	2 mesh – 500x3500mesh
Aperture	0.001mm – 25mm
Roll size	0.914mx30m, 1mx30m, 1.2mx30m, 2mx30m, etc
MOQ	1 square meter
Free Sample	A4 size of stock size
Package	Inside a paper tube, wrapped with moisture-proof paper, and then put into a box.

316L stainless steel mesh roll characteristics

Marine grade stainless steel.
Good machinability.
High strength and high toughness.
Good thermal stability.
Excellent corrosion resistance, especially in strong corrosive media such as chlorides.

316L stainless steel wire mesh application

For various filtration and separation requirements in the chemical industry, petroleum, Mining, shipbuilding, mining, food, .
Heat exchangers.
Decoration mesh.
Insect screen/mosquito screen.
Aerospace.
Waster water and ballast water filter.
Seawater treatment equipment.
Wire Mesh Basket Manufacturing.
Screen printing.

Other things you need to know about 316 stainless steel mesh

1. How to order?

When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.

For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.

More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll

2. Deep processing services

The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.

3. Detail application example

325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.

4. Specifications mesh count of SUS 316L wire mesh

Plain /Twill Square Woven Mesh
Mesh count	Wire Dia		Width of Opening		Open area
Mesh count	Inches	mm	Inches	mm	%
1X1	0.157	4	0.84	21.4	71
4X4	0.063	1.6	0.187	4.75	56
8X8	0.043	1.1	0.08	2.08	42
10X10	0.039	1	0.06	1.54	36
12X12	0.023	0.584	0.06	1.52	51.8
14X14	0.023	0.584	0.048	1.22	45.2
16X16	0.018	0.457	0.0445	1.13	50.7
18X18	0.017	0.432	0.0386	0.98	48.3
20X20	0.016	0.406	0.034	0.86	46.2
24X24	0.014	0.356	0.0277	0.7	44.2
30X30	0.012	0.305	0.0213	0.54	40.8
35X35	0.011	0.279	0.0176	0.45	37.9
40X40	0.01	0.254	0.015	0.38	36
50X50	0.008	0.203	0.012	0.31	36

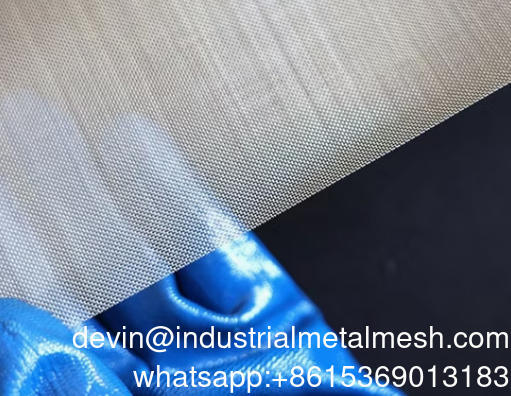

Certificate Guarantee AISI 321 Woven Wire Mesh Square Hole Stainless Steel Wire Mesh 1

Certificate Guarantee AISI 321 Woven Wire Mesh Square Hole Stainless Steel Wire Mesh 2

Certificate Guarantee AISI 321 Woven Wire Mesh Square Hole Stainless Steel Wire Mesh 3

Certificate Guarantee AISI 321 Woven Wire Mesh Square Hole Stainless Steel Wire Mesh 4
