Wholesale Price 2.4m Ornamental Decorative Metal Steel D Pale Palisade Fencing Euro Fence Price

큰 이미지 : Wholesale Price 2.4m Ornamental Decorative Metal Steel D Pale Palisade Fencing Euro Fence Price

제품 상세 정보:

원래 장소:	중국 허베이
브랜드 이름:	XMESH
인증:	SGS
모델 번호:	방어벽 울타리

결제 및 배송 조건:

최소 주문 수량:	200개
포장 세부 사항:	팔레트
배달 시간:	15-25일
지불 조건:	티티,LC,
공급 능력:	1000개

상세 제품 설명

크기:	2400 H x 2300 l	표면 처리:	아연 도금
IPE 포스트 크기:	100x55mm	팔레스:	W 섹션
유형:	펜싱, 격자 및 게이트, 보호 그릴 프로파일 또는 클램핑 프로파일	특징:	쉽게 조립,환경 친화적,방수,부패 방지,설치류 방지
금속 종류:	철,강철,철 또는 진료	프레임 마감:	PVC 코팅,파우더 코팅,안오디스
프레임 소재:	금속	압력 처리 목재 유형:	열처리, 자연
색상:	하얗고 검고 녹색이고 푸르고 빨갛습니다	표면 처리:	아연 도금+PVC 코팅, 전기 \ 핫핑 아연 도금+PVC \ 분말 코팅
애플리케이션:	울타리 메쉬, 중고, 정원, 주거	용법:	보호, 정원 장식, 건물, 정원 울짱 / 고속도로 / 공항
이메일:	devin@industrialmetalmesh.com	왓츠앱:	+8615369013183
강조하다:	2.4m decorative metal palisade fencing , steel Euro fence with warranty , ornamental wire mesh fence panels

Wholesale Price 2.4m Ornamental Decorative Metal Steel D Pale Palisade Fencing Euro Fence Price

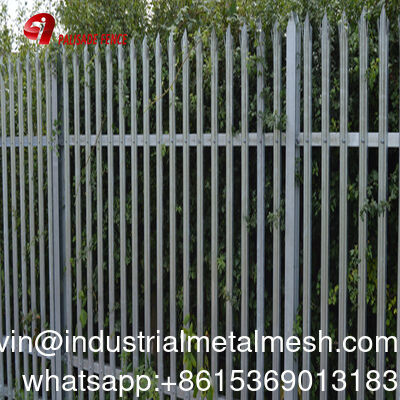

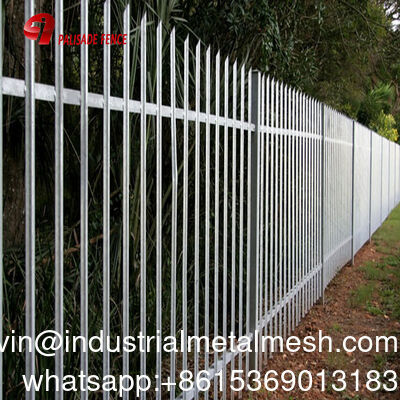

A steel picket fence is also known as a picket-welded fence, ornamental fence, or steel security fence. The panels are manufactured using the highest-strength steel pickets and rails, and are available in a wide range of sizes and styles. Panels are attached with high-strength steel brackets to galvanized and powder-coated square tubular steel posts. Steel Picket Fence is made of high-quality hot-dipped galvanized steel tube. The top vertical tube is pressed to spear by a heavy-duty punch.

The pales are made of hot formed and cold rolled steel belts.These belts offer both strength and rigidity combined with a long life span.
tower Palisade fence normally includes two types of pales, "W" profile, "D" profile .

Specification of W-Section Type palisade fence
Panel Size		W-Section Pale: 70 mm		Horizontal Rail	Post
Height	Width	Pale thickness	Qty: Pale	Angle Steel	Square Post	I Post
1.8 m	2.75 m	2/2.5/3 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 6 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	2/2.5/3 mm	17 pcs
2.4 m	2.75 m	2/2.5/3 mm	17 pcs
3.0 m	2.75 m	2/2.5/3/3.5 mm	17 pcs
W-section Pale: 62 mm
1.8 m	2.75 m	1.5/2/2.5 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 6 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	1.5/2/2.5 mm	17 pcs
2.4 m	2.75 m	1.5/2/2.5 mm	17 pcs
3.0 m	2.75 m	1.5/2/2.5 mm	17 pcs
D-Section Pale: 65 mm
Panel Size		D-Section Pale: 65 mm		Horizontal Rail	Post
Height	Width	Pale thickness	Qty: Pale	Angle Steel	Square Post	I Post
1.8 m	2.75 m	1.5/2/2.5/3 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 5 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	1.5/2/2.5/3 mm	17 pcs
2.4 m	2.75 m	1.5/2/2.5/3 mm	17 pcs
3.0 m	2.75 m	1.5/2/2.5/3 mm	17 pcs

Pales-"W" section

Most useful vetical type of pales for d section galvanized palisade fence, which is always the customers' first choice for pales .

width	thickness	surface treatment	head
65 mm 68 mm 70 mm	2.0 mm 2.5 mm 3.0 mm	powder painted hot dipped galvanized only 450 grams per square meter	triple pointed top single pointed top round top round and notch top

Pales-"D" section

Compared with "W" profile pales, "D" profile is more economical.

Post- H Type

As a connection pipe between the fence panel, H type is the most useful way.

size	thickness	surface treatment	head
100x55mm 100x68mm 120x74mm	3.5 mm 4.0 mm 4.5 mm 5.0 mm	powder painted hot dipped galvanized only 450 grams per square meter	cut sharp

Specifications of security palisade fence:

PALISADE FENCE SPECIFICATIONS

• Post: 2400 High fence - 100×45 TFB
• Post: 3000 High Fence - 150 UB 14.0
• Rail: 50x50x6 EA
• Fish Plate: 40×8 140 long
• Corner Fish Plate: 40×8 215 long W Profile
• 'W' Pale: 71x21x3 W Profile
• Rail Fixings: M12x30 Cuphead Bolt and Shear Nut
• Pale Fixings: M8x25 T Bolt and Shear Nut or - Stainless Steel Huck Pin and Collar
• Mid Bay Support: M12x500 Threaded Rod and 2 x Nuts

1.Instruction Of Pales Section:

------Corrugated "W"section1.5- 3.0 mm thickness, corrugated "D"section 1.5-3.9 mm thickness.

------Corrugated "D" section is used for medium and low security palisade fencing.
------"Angle Steel " palisade fence as normal will use the 3.0-5.0mm thickness steel.

palisade fence-PF001

Steel Palisade Fencing Specification.

Panel Size		W-Section Pale: 70 mm		Horizontal Rail	Post
Height	Width	Pale thickness	Qty: Pale	Angle Steel	Square Post	I Post
1.8 m	2.75 m	2/2.5/3 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 6 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	2/2.5/3 mm	17 pcs
2.4 m	2.75 m	2/2.5/3 mm	17 pcs
3.0 m	2.75 m	2/2.5/3/3.5 mm	17 pcs
W-section Pale: 62 mm
1.8 m	2.75 m	1.5/2/2.5 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 6 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	1.5/2/2.5 mm	17 pcs
2.4 m	2.75 m	1.5/2/2.5 mm	17 pcs
3.0 m	2.75 m	1.5/2/2.5 mm	17 pcs
D-Section Pale: 65 mm
Panel Size		D-Section Pale: 65 mm		Horizontal Rail	Post
Height	Width	Pale thickness	Qty: Pale	Angle Steel	Square Post	I Post
1.8 m	2.75 m	1.5/2/2.5/3 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 5 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	1.5/2/2.5/3 mm	17 pcs
2.4 m	2.75 m	1.5/2/2.5/3 mm	17 pcs
3.0 m	2.75 m	1.5/2/2.5/3 mm	17 pcs

Customized Specifications Acceptable. If you have any special requests for the palisade fence, please don't hesitate to contact us.

Core Advantages

1. High Security Anti-Climb Design
Sharp top pales (W section or D section) effectively prevent climbing and intrusion.

2. Strong Steel Structure
Made from heavy-duty steel with high strength, ensuring excellent impact resistance.

3. Corrosion Resistant Finish
Hot dip galvanized or powder coated surface for long service life in harsh environments.

4. Modular Fence System
Includes fence panels, posts, rails, and accessories for easy installation.

5. Suitable for Various Projects
Widely used in industrial, commercial, and infrastructure fencing applications.

Our steel palisade fence Features Include:
1.All pre - galvanised materials used.
2.All materials include high quality powder-coating.
3.14g Black powder coated tek screws or the option of upgrading to anti-vandal fixings.
4.4-hole rail brackets for additional strength for security fencing.
5.A complete range of accessories available. All powder coated to match the panels.

High Security Palisade Fencing application.

Common uses include railway and track protection, schools, colleges and universities, research laboratories, motorways and highways protection, utility companies protection and around industrial sites.
