제품 상세 정보:
결제 및 배송 조건:
|
| 크기: | 2400 H x 2300 l | 표면 처리: | 아연 도금 |
|---|---|---|---|
| IPE 포스트 크기: | 100x55mm | 팔레스: | W 섹션 |
| 유형: | 펜싱, 격자 및 게이트, 보호 그릴 프로파일 또는 클램핑 프로파일 | 특징: | 쉽게 조립,환경 친화적,방수,부패 방지,설치류 방지 |
| 금속 종류: | 철,강철,철 또는 진료 | 프레임 마감: | PVC 코팅,파우더 코팅,안오디스 |
| 프레임 소재: | 금속 | 압력 처리 목재 유형: | 열처리, 자연 |
| 색상: | 하얗고 검고 녹색이고 푸르고 빨갛습니다 | 표면 처리: | 아연 도금+PVC 코팅, 전기 \ 핫핑 아연 도금+PVC \ 분말 코팅 |
| 애플리케이션: | 울타리 메쉬, 중고, 정원, 주거 | 용법: | 보호, 정원 장식, 건물, 정원 울짱 / 고속도로 / 공항 |
| 이메일: | devin@industrialmetalmesh.com | 왓츠앱: | +8615369013183 |
| 강조하다: | steel palisade security fence,outdoor garden fencing panels,treated steel wire mesh fence |
||

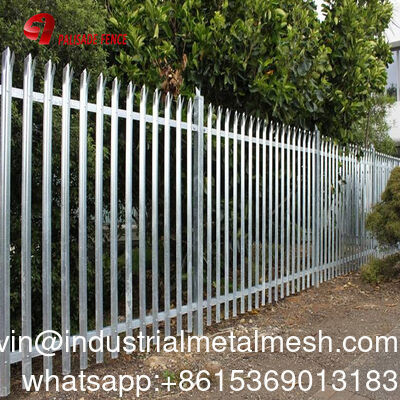

Heavily Treated Steel Palisade Fence Outdoor Security Fencing for Garden Decorations
Palisade fencing with "D" and "W" section pale provides an effective deterrent to intruders. The two head styles - "D" pale profile, and "W" section pale - for different choice to meet a perceived level of security risk. "D" section thickness (shown as table-1) 2.0 mm /3.0 mm and "W" section thickness 2.0 mm /2.5 mm are chosen by the risk assessment for a particular uses.
Palisade fencing with "D" and "W" section pale provides an effective deterrent to intruders. The two head styles - "D" pale profile, and "W" section pale - for different choice to meet a perceived level of security risk. "D" section thickness (shown as table-1) 2.0 mm /3.0 mm and "W" section thickness 2.0 mm /2.5 mm are chosen by the risk assessment for a particular uses.
Specifications of security palisade fence:
palisade fence-PF001
Specification
| Height | 1200mm/1500mm/1800mm/2000mm/2100mm/2400mm/2700mm/3000mm | |
| Width | 2750mm per bay(standard length) | |
| Pale | "W" Section or "D" Section | |
| Width | 65-68mm | |
| Thickness | 2.0mm/2.5mm/3.0mm | |
| Qty of pales | 17 pales per bay | |
| Head | Triple Pointed, Single Pointed, Round, Round and Notch | |
| RSJ Post | 100x55 RSJ, available in dig in or bolt down options | |
| Rail | 50x50x5 RSA, 40x40x4 RSA | |
| Rail Thickness | 4mm/5mm/6mm | |
| Fittings | Fish plate, one per rail, availbale in straight or corner options | |
| M8,snap off nuts and bolts, 34pieces per bay, for fixing pales with rails | ||
| M12, snap off nuts and bolts, 4 pieces per bay, for fixing rails with post | ||
| one bay of standard 2 rails palisade fence comes with: 1 RSJ post + 17 pales +2 rails + 34 pieces M8 + 4 pieces M12 +2 fish plates | ||
