| 크기: | 2400 H x 2300 l | 표면 처리: | 아연 도금 |
|---|---|---|---|
| IPE 포스트 크기: | 100x55mm | 팔레스: | W 섹션 |
| 유형: | 펜싱, 격자 및 게이트, 보호 그릴 프로파일 또는 클램핑 프로파일 | 특징: | 쉽게 조립,환경 친화적,방수,부패 방지,설치류 방지 |
| 금속 종류: | 철,강철,철 또는 진료 | 프레임 마감: | PVC 코팅,파우더 코팅,안오디스 |
| 프레임 소재: | 금속 | 압력 처리 목재 유형: | 열처리, 자연 |
| 색상: | 하얗고 검고 녹색이고 푸르고 빨갛습니다 | 표면 처리: | 아연 도금+PVC 코팅, 전기 \ 핫핑 아연 도금+PVC \ 분말 코팅 |
| 애플리케이션: | 울타리 메쉬, 중고, 정원, 주거 | 용법: | 보호, 정원 장식, 건물, 정원 울짱 / 고속도로 / 공항 |
| 이메일: | devin@industrialmetalmesh.com | 왓츠앱: | +8615369013183 |
| 강조하다: | Powder coated palisade fencing,Hot-dip galvanized fence panels,Affordable wire mesh fencing |
||

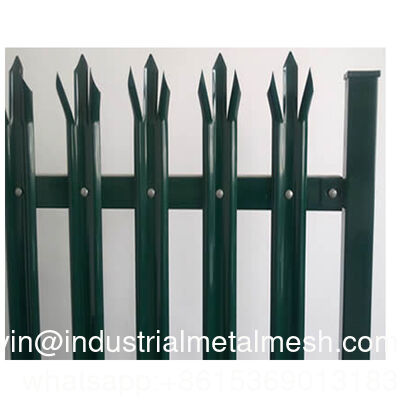

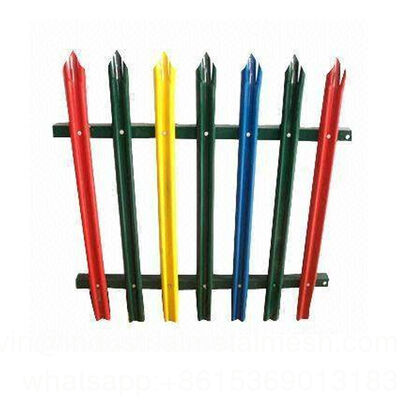

Affordable Powder Coated and Hot-DIP Galvanized Palisade Fencing
Palisade Fencing is the perfect solution to your boundary security fencing. As Palisade Fencing is supplied piece small it is easily adapted to most site conditions.Palisade Pales - the most popular form of palisade pale currently on the market is the W pale. lt is called a W pale because theshape of the pale looks like a W compared to traditional rounded pale, which is referred to as a D pale. Due to its re-enforcing shapethe W pale is more economical as you can get the same strength, whilst using lower gauge steel. This makes the palisade fencecheaper than one that uses the old-style D pale. Having said this the D pale palisade fence is stll extremely popular in a fewenvironments. D pale palisade fencing is commonly specifed for government projects, such as around prisons and schools. t is alsovery important if you are repalring a palisade fence, or extending one, that you continue to use the same palisade pales, so that it does not look out of place. As most palisade fenced traditionaly used D pales they continue to be popular for these types of fencing projects.
Specifications of security palisade fence:
palisade fence-PF001
Specification
|
Part Name
|
Specification
|
Thickness | Length | Height | |
|
H Post(IPE)
|
100*55mm
100*68mm 120*74mm |
3.5mm 4.0mm 4.5mm 5.0mm | On the fence height basis | ||
|
Rail Angle Iron
|
50*50mm
40*40mm |
5.0mm6.0mm | 2710mm | 1200mm 1500mm 1800mm 2000mm 2100mm 2400mm 2700mm 3000mm |
|
|
Pale Section
|
D Section
|
70mm | 2.0mm 2.5mm 3.0mm |
||
| W Section | 65-75mm | ||||
|
Angle Iron
|
40*40mm
|
||||
|
Fish Plate
|
115*30*6mm or 140*39*8mm
|
||||
|
Saddle Head M8 Botts
|
M8*40mm
|
||||
|
Cup Square M12 Botts
|
M12*30mm
|
||||
