| 재료: | 스테인레스 스틸 | 모델 번호.: | 스테인레스 스틸 아이 너트 |
|---|---|---|---|
| 연결: | 공통 볼트 | 머리 스타일: | 둥근 |
| 강조하다: | stainless steel eye nut,outdoor lifting eye nut,stainless steel loading hardware |
||

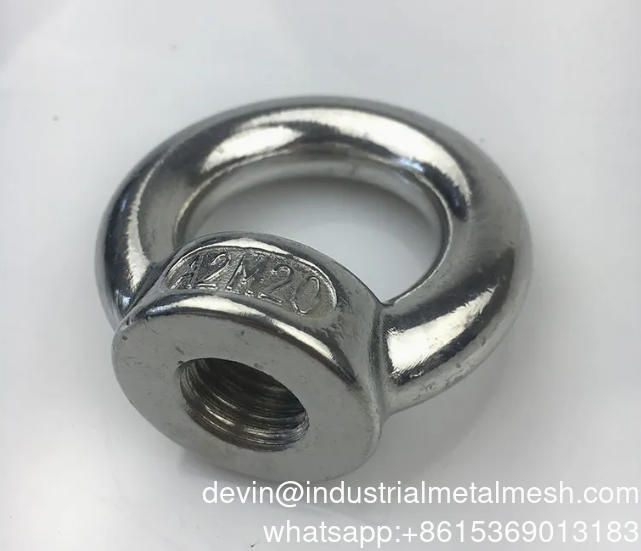

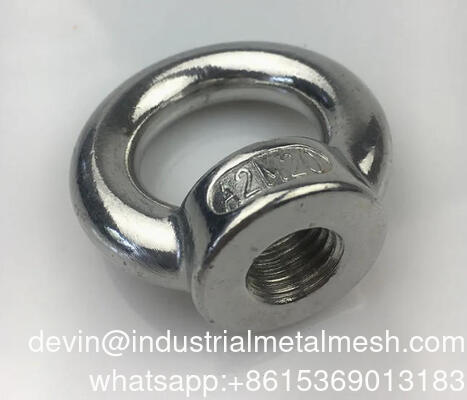

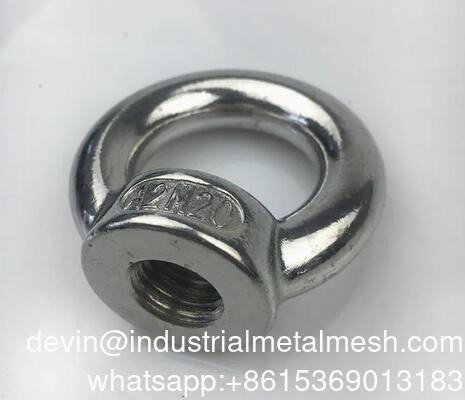

Stainless Steel Eye Nut for Outdoor Lifting Nad Loading
Stainless Steel Eye Nut: The Secure Anchor Point for Critical Lifting and Rigging
The stainless steel eye nut is a fundamental and highly reliable lifting component, engineered to create a secure, permanent, and corrosion-resistant anchor point for rigging, pulling, and tie-down applications in demanding environments. Forged from high-grade stainless steel alloys (primarily 304 or marine-grade 316), it delivers exceptional resistance to rust, pitting, and chemical degradation, making it indispensable for use in marine, offshore, food processing, pharmaceutical, chemical, and coastal infrastructure industries where long-term integrity under harsh conditions is non-negotiable.
This versatile fitting features a fully closed, load-rated eye loop integrated with a precision-machined nut body. The design allows it to be securely threaded onto a matching stud, bolt, or threaded rod, instantly transforming it into a robust and safe lifting point or connection hub. The smooth, polished eye loop minimizes wear on slings, hooks, and shackles, while its symmetrical design allows for multi-directional loading within its rated capacity, providing flexibility in complex rigging configurations.
Manufactured under strict quality controls, each stainless steel eye nut undergoes forging, heat-treatment, and machining processes to achieve superior mechanical properties and thread accuracy. They are rigorously tested and certified to comply with international standards such as DIN, EN, and ASME, with the Working Load Limit (WLL) clearly stamped on the body for easy identification and safe use. As a cornerstone of secure rigging systems, the stainless steel eye nut offers a perfect fusion of material durability, functional simplicity, and unwavering safety, providing professionals with the trusted anchor point needed to execute lifts and secure loads with confidence in any environment.
Product Parameters
| Stock no. | SIZE (mm) | A (mm) | B (mm) | D (mm) | E (mm) | H (mm) | M (mm) |
| HS4050201 | 6 | 5.5 | 16.5 | 16.5 | 8 | 28 | 6 |
| HS4050202 | 8 | 7.5 | 20 | 20 | 9.5 | 35.5 | 8 |
| HS4050203 | 10 | 9 | 24 | 25 | 10 | 41.5 | 10 |
| HS4050204 | 12 | 11 | 29 | 30 | 12 | 50.5 | 12 |
| HS4050205 | 16 | 13.5 | 33 | 35 | 15 | 60.5 | 16 |
| HS4050206 | 20 | 15 | 39 | 40 | 16 | 70 | 20 |
| HS4050207 | 24 | 19 | 48 | 50 | 20.5 | 85.5 | 24 |
