| 재료: | 탄소강 와이어 | 메쉬 오프닝: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 밀리미터 |
|---|---|---|---|
| 와이어 직경: | 0.4 밀리미터 - 1.5 밀리미터 | 롤 폭: | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m |
| 롤 길이: | 15M,30M,50M ect | 표면 처리: | 뜨겁게 활성화하여서 직류 전기로 자극되거나 전기여서 하강했습니다 |
| 모델 번호: | xx-01001 | 애플리케이션:: | 울타리 메쉬 |
| 이메일: | devin@industrialmetalmesh.com | 왓츠앱: | +8615369013183 |
| 강조하다: | 1/2 inch galvanized welded wire mesh,2x2 welded wire mesh wholesale,small hole galvanized wire mesh |
||

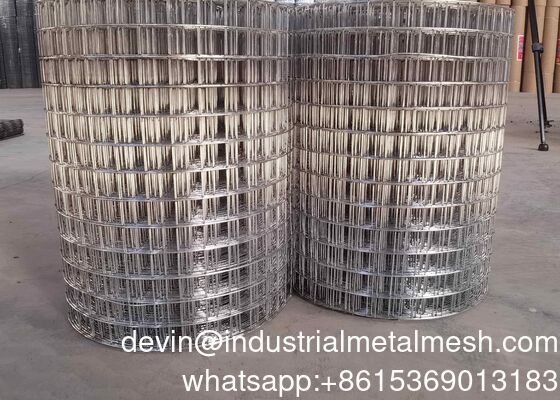

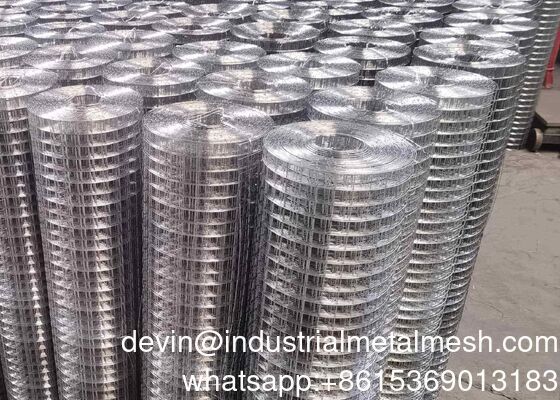

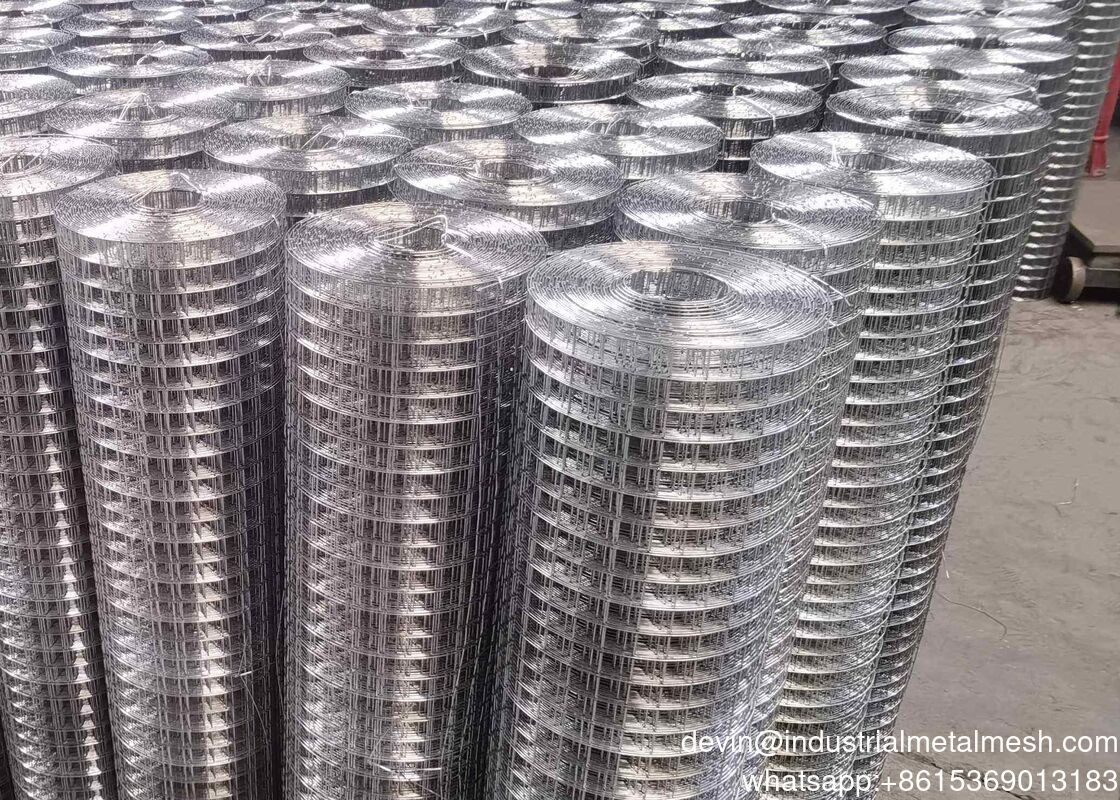

Wholesale Small Hole 1/2 2X2 Galvanized Welded Wire Mesh Price
Product Description:
Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.
|
Galvanized Welded Wire Rebar Mesh Specifications
|
||
|
Opening (In inch)
|
In metric unit(mm)
|
Wire Diameter(BWG)
|
|
1/4" x 1/4"
|
6.4mm x 6.4mm
|
22,23,24
|
|
3/8" x 3/8"
|
10.6mm x 10.6mm
|
19,20,21,22
|
|
1/2" x 1/2"
|
12.7mm x 12.7mm
|
16,17,18,19,20,21,22,23
|
|
5/8" x 5/8"
|
16mm x 16mm
|
18,19,20,21
|
|
3/4" x 3/4"
|
19.1mm x 19.1mm
|
16,17,18,19,20,21
|
|
1" x 1/2"
|
25.4mm x 12.7mm
|
16,17,18,19,20,21
|
|
1-1/2" x 1-1/2"
|
38mm x 38mm
|
14,15,16,17,18,19
|
|
1" x 2"
|
25.4mm x 50.8mm
|
14,15,16
|
|
2" x 2"
|
50.8mm x 50.8mm
|
12,13,14,15,16
|
|
Technical Note:
1.Standard roll length: 30m,100m;width: 0.5m to 2.5m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
|
Specification
|
||||
|
Opening
|
Wire Diameter
|
Width 0.4-2m
Length 5-50m
|
electric galvanized before welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
|
Inch
|
Metric Unit
|
|||
|
1/4"x1/4"
|
6.4mmx6.4mm
|
BWG24-22
|
||
|
3/8"x3/8"
|
10.6mmx10.6mm
|
BWG22-19
|
||
|
1/2"x1/2"
|
12.7mmx12.7mm
|
BWG23-16
|
||
|
5/8"x5/8"
|
16mmx16mm
|
BWG21-18
|
||
|
3/4"x3/4"
|
19.1mmx19.1mm
|
BWG21-16
|
||
|
1"x1/2"
|
25.4mmx25.4mm
|
BWG21-16
|
||
|
1-1/2"x1 1/2"
|
38mmx38mm
|
BWG19-14
|
||
|
1"x2"
|
25.4mmx12.7mm
|
BWG16-14
|
||
|
2"x2"
|
50.8mmx50.8mm
|
BWG15-12
|
||
|
2"x4"
|
101.6mmx101.6mm
|
BWG15-12
|
||
|
4"x4"
|
101.6mmx152.4mm
|
BWG15-12
|
||
|
4"x6"
|
101.6mmx152.4mm
|
BWG15-12
|
||
|
6"x6"
|
152.4mmx152.4mm
|
BWG15-12
|
||
|
6"x8"
|
15.4mmx203.2mm
|
BWG14-12
|
||
|
Note:Special specification can be made according to customers requires
|
||||
SURFACE TREATMENT
Feature of plastering welded wire mesh:
1. economic and good looking
2. anti-corrosion and long service life
3. wide scope of using
Welded Wire Mesh Welding style:
Hot dipped galvanized after or before welding
Electro galvanized after or before welding
Weaving and characteristics:
Hot dipped galvanizing after welding
Welding with hot dipped galvanized iron wire
Electric galvanizing after welding
Welding with electric galvanized iron wire
PVC coated welded wire mesh
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
