제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 강철 | 표면 처리: | 뜨거운 담근 아연 도금 |
|---|---|---|---|
| 기준: | GB/T3091 - 2001년, BS1387 - 1985년, DIN EN10025, EN10219, JIS G3444:2004, ASTM A53 | 강철 등급: | GB/T3091 - 2001:Q195, Q235 BS1387 - 1985, DIN EN10025 EN10219 :S235JR JIS G3444:2004:STK400 ASTM A53 |
| 강조하다: | stainless steel galvanized pipe,construction decoration steel pipe,factory galvanized steel mesh |
||

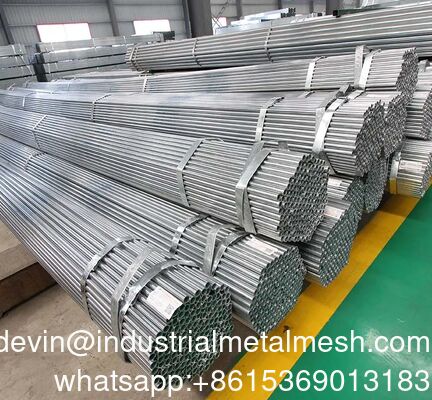

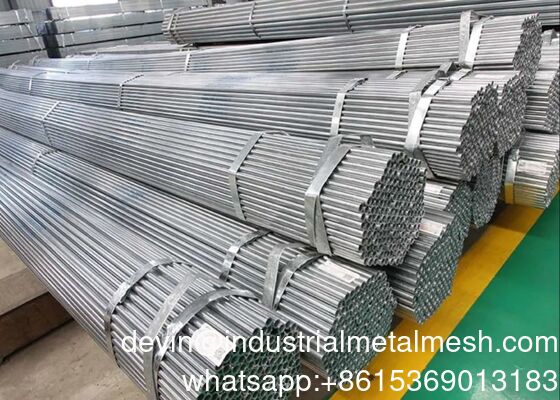

High-Quality Stainless Steel Construction Decoration Material Galvanized Steel Pipe From Factory
Hot dip galvanized tube is to make molten metal and iron matrix reaction and produce alloy layer, so that the matrix and coating of the combination of the two. Hot dip galvanizing is the first steel pipe pickling, in order to remove iron oxide on the surface of the steel pipe, pickling, through ammonium chloride or zinc chloride aqueous solution or ammonium chloride and zinc chloride mixed aqueous solution tank for cleaning, and then into the hot dip plating tank. Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. Complex physical and chemical reactions occur between hot dip galvanized steel tube and molten plating solution to form a tightly structured zinc-ferroalloy layer with corrosion resistance. The alloy layer is integrated with pure zinc layer and steel tube matrix, so its corrosion resistance is strong.
| Quick Details |
| Standard | ASTM, GB, JIS, DIN,BS, ASTM A106-2006, ASTM A53-2007, ASTM A 53M-2007, ASME B36.10M-2004, GB /T 3091-2001, GB/T 13793-1992, JIS J3444-2006, JIS J3466, DIN 2444,BS 1387, BS 1139, BS 4568, BS EN 39 | Grade | Q195-Q345, A53-A369, ST35-ST52, 10#-45#, Q235, Q345, Q195, Q215,A53(A,B), A106(B,C), ST 42, 10#, 20# |
| Thickness | 1MM - 10MM | Section Shape | Round |
| Outer Diameter | 21.3 MM - 273 MM | Place of Origin | Tianjin, China |
| Application | Structure Pipe | Technique | ERW |
| Certification | ISO9001 ISO18001 UL | Surface Treatment | Galvanized or Painted or Black |
| Special Pipe | Thick Wall Pipe | Alloy Or Not | Non-Alloy |
| Tolerance | ±5% | Type | Weld Steel Pipe |
| Processing Service | Bending, Welding, Punching, Cutting | Product Name | Pipe, Tube |
| Secondary or Not | Non-secondary | Length | As Customers' Requirement |
| Material | Carbon Steel (Q195, Q235, Q345) | Zinc Coating | 220 g/m2 ( or Customized) |
| Pipe Ends | Plain, Bevel, Threaded or Grooved | End Protector | None or Plastic Caps |
| Grade | Chemical Composition | Mechanical Properties | ||||||
| C | Mn | Si | S | P | Yield | Tensile | Eelongation | |
| Strength Mpa | Strenth Mpa | % | ||||||
| Q195 | 0.06-0.12 | 0.25-0.50 | ≤0.30 | ≤0.045 | ≤0.05 | ≥195 | 315-430 | ≥33 |
| Q215 | 0.09-0.15 | 0.25-0.55 | ≤0.30 | ≤0.05 | ≤0.045 | ≥217 | 335-450 | ≥27 |
| Q235 | 0.12-0.20 | 0.30-0.67 | ≤0.30 | ≤0.045 | ≤0.04 | ≥235 | 375-500 | ≥26 |
| Q345 | ≤0.20 | 1.00-1.60 | ≤0.55 | ≤0.04 | ≤0.04 | ≥345 | 470-630 | ≥22 |
1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H
Square & rectangular steel tube : The size can be based on your requirement to custom.
| Name | Size | Wall Thickness | Length |
| mm | mm | m | |
| Square tube | 10x10-500x500 | 0.6-25.0 | 1-12m |
| Rectangular tube | 20x10-200x400 | 0.7-13.0 | 1-12m |
|
TECHNICAL PARAMETERS
|
|
|
Product Name
|
Galvanized Steel Round Pipe
|
|
Keywords
|
Steel Pipe
|
|
Standard
|
BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004
|
|
Material
|
Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
|
|
Thickness
|
Pre Galvanized:0.6-1.5mm.
|
|
Hot Dipped Galvanized: 1.6- 25mm.
|
|
|
Length
|
5.80 Meters Or 6 Meters As Usual Or By Customer'S Requirements
|
|
Out Diameter
|
Pre Galvanized:1/2''-4''(21.3-114.3mm).
|
|
Hot Dipped Galvanized:1/2''-10''(21.3Mm-273.1mm).
|
|
|
Zinc Coating
|
Pre Galvanized:5GSM-40GSM
|
|
Hot Dipped Galvanized 35GSM-200GSM
|
|
|
Technique
|
Electronic Resistance Welded (ERW)
|
|
Surface Finish
|
Pre-Galvanized, Hot Dipped Galvanized, Electro Galvanized, Black, Painted, Threaded, Engraved, Socket.
|
|
Application
|
Hot Dipped Galvanized Steel Pipe Is Widely Used In Construction, Structure, Accessorize,Construction, Machinery Parts,Fluid Transportation,The Stress Parts Of The AutomobileTractor Parts And So On.
|
|
Packing
|
1.Big OD:In Bulk
|
|
2.Small OD:Packed By Steel Strips
|
|
|
3.Woven Cloth With 7Slats
|
|
|
4.According To The Requirements Of Customers
|
|
|
SIZE INTRODUCTION
|
||
|
Out Diameter
|
Wall Thickness
|
Length
|
|
Inch
|
Mm
|
M
|
|
1/2"
|
0.5-2.75
|
1-12M (Customized)
|
|
3/4"
|
0.5-2.75
|
1-12M (Customized)
|
|
1"
|
0.5-3.75
|
1-12M (Customized)
|
|
1-1/4"
|
0.5-5.0
|
1-12M (Customized)
|
|
1-1/2"
|
0.5-5.0+
|
1-12M (Customized)
|
|
2"
|
0.5-5.0+
|
1-12M (Customized)
|
|
2-1/2"
|
0.8-5.0+
|
1-12M (Customized)
|
|
3"
|
0.8-5.0+
|
1-12M (Customized)
|
|
4"
|
0.8-4.0
|
1-12M (Customized)
|
|
5"
|
1.1-4.75
|
1-12M (Customized)
|
|
6"
|
1.1-6.0+
|
1-12M (Customized)
|
|
8"
|
1.2-6.5+
|
1-12M (Customized)
|
|
10"
|
2.75-5.0+
|
1-12M (Customized)
|
