| 재료: | 스테인레스 스틸 와이어, 알루미늄 시트, 스테인레스 스틸 Wire304, 블랙 와이어 메쉬 | 애플리케이션: | 화면 |
|---|---|---|---|
| 기술: | 천공 | 유형: | 확장된 메쉬 |
| 이메일: | devin@industrialmetalmesh.com | 왓츠앱: | +8615369013183 |
| 강조하다: | Stainless Steel 310 Hex Mesh,Industrial Hex Wire Mesh,0.2mm Stainless Steel Mesh |
||
Stainless Steel 310 Hex Mesh, for Industrial, Size: 0.2mm
Hex Mesh with lances is a hexagonal cellular mesh grating with punched lances which is specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.
Features:
Hexmetal is a an unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion.
metal mesh has been manufacturing hex mesh for wear resistant applications for more than 10 years, so we understand the strict performance and technical requirements that exist across a range of industries, such as petroleum refineries, Alumina calciners and cement plants.
Whether you need standard size panels, custom-shapes or rolled products, Antec has the equipment, expertise and experience to meet your needs quickly and cost-effectively.

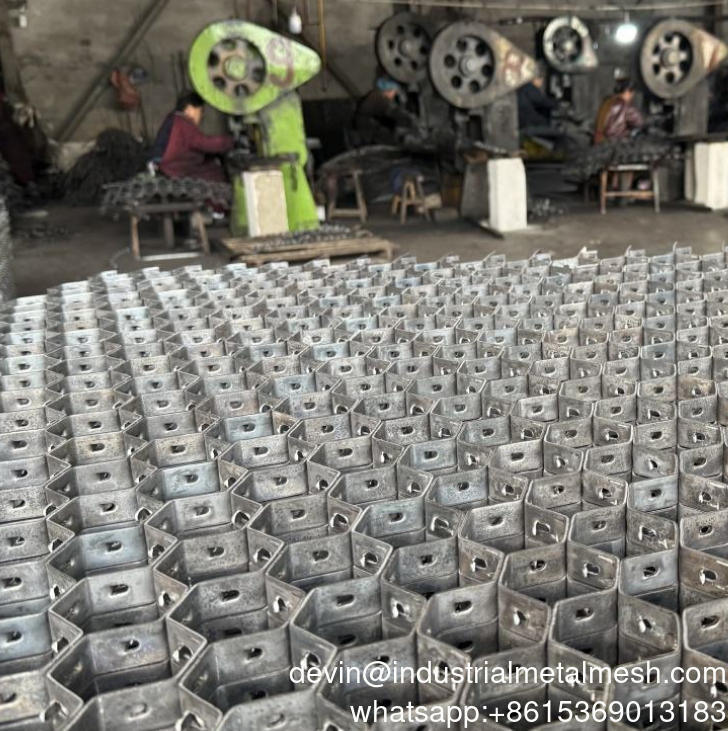

Hexsteel: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
Hex-metal: Pronges/Lances Type
this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
specification:
| Material | Thickness(mm) | Thickness2(mm) | mesh(mm) | Type | size(m2/pcs) | Panal l&w(mm) |
| Steel | 8 | 1.2 | 40*40 | 8-1.2-40*40 | 0.6 | 1070*562 |
| Steel | 10 | 1.2 | 40*40 | 10-1.2-40*40 | 0.6 | 1070*562 |
| Steel | 15 | 1.5 | 50*50 | 15-1.5-50*50 | 1 | 1550*650 |
| Steel | 15 | 1.75 | 50*50 | 15-1.75-50*50 | 1 | 1550*650 |
| Steel | 20 | 1.75 | 50*50 | 20-1.75-50*50 | 2 | 1550*1300 |
| 0Cr13 | 10 | 1.2 | 40*40 | 10-1.2-40*40 | 0.6 | 1070*562 |
| 0Cr13 | 20 | 1.75 | 50*50 | 20-1.75-50*50 | 1.9 | 1550*1230 |
| 0Cr13 | 25 | 1.75 | 50*50 | 25-1.75-50*50 | 1.9 | 1550*1230 |
| 0Cr13 | 40 | 1.75 | 50*50 | 40-1.75-50*50 | 1.9 | 1550*1230 |
| 304 | 8 | 1.2 | 40*40 | 8-1.2-40*40 | 0.6 | 1070*562 |
| 304 | 10 | 1.2 | 50*50 | 10-1.2-50*50 | 1 | 1550*650 |
| 304 | 20 | 1.75 | 50*50 | 20-1.75-50*50 | 1.88 | 1540*1225 |
| 304 | 25 | 1.75 | 50*50 | 25-1.75-50*50 | 1.9 | 1550*1230 |
| 304 | 40 | 1.75 | 50*50 | 40-1.75-50*50 | 1.9 | 1550*1230 |
| S32205 | 10 | 1.2 | 40*40 | 10-1.2-40*40 | 0.73 | 1340*590 |
| 0Cr25Ni20 | 10 | 1.2 | 40*40 | 10-1.2-40*40 | 0.6 | 1070*562 |
| 0Cr25Ni20 | 20 | 2.0 | 50*50 | 20-2.0-50*50 | Or customer | |
| Anchorage Material | Chemical Composition |
Typical Service Temperature |
||||||||
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others | |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ | ||||||||
Applications:
HexMesh Refractory, from ZhongTeng, is a high quality, durable hexagonal mesh product designed for use in refractory applications. The hexagonal mesh is made from a heavy-duty steel and is available in a variety of sizes and thicknesses to meet your project's needs. HexMesh Refractory is available in 2mm, 1.9mm, and 2.5mm thicknesses, and can also be custom-made to suit your project's specifications.
HexMesh Refractory is certified to ISO9001 standards, and is available in a range of colors including silver, to perfectly match your project's look. The mesh can be bent and cut as needed, and is available in minimum order quantities of 30M2, with a price range of 25-89/M2. HexMesh Refractory can be delivered within 10-25 days, with payment terms of TT or LC accepted. The product is packaged in pallets or wooden boxes and is in stock for immediate supply, with a maximum supply capability of 1300/M2.
Customization:
Hexmesh Refractory
Model Number: ZT--010
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 30M2
Price: 25-89/M2
Packaging Details: Pallets or Wooden Box
Delivery Time: 10-25 Days
Payment Terms: TT Or LC
Supply Ability: 1300/M2
Mesh: 50X50mm
Product Name: HexMesh Refractory
Material: Low-Carbon Steel Or Stainless Steel
Width: 1-2m
Sample: Sample Availible
Highlighted Points:
Hex Grid
Stainless Steel Hex Mesh For Refractory Lining
Thermostable Hexmesh And Anchor For Lining
