Factory-Fresh SS310 Flexible Mesh Lance Tabs and Flexmesh for Cyclones in Oil Refineries Plain Weave and Perforated Technique

Factory-Fresh SS310 Flexible Mesh Lance Tabs and Flexmesh for Cyclones in Oil Refineries Plain Weave and Perforated Technique

Besides mesh produced out of wire, we also offer mesh produced out of steel strips: Hexagonal Mesh. The opening in the mesh is hexagonshaped and is also know as hexmesh. Due to the construction, hexagonal mesh has got a very high rigidity that will even last after rolling it into a specific radius. Because of the excellent rigidity, the material is extremely suitable for armouring.

Besides mesh produced out of wire, Mesh Masters also supplies mesh produced out of steel strips: Hexagonal mesh.

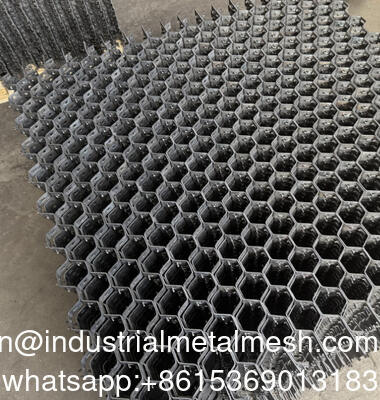

Hexagonal mesh, also known as hexmesh, has got a hexagon-shaped opening and is produced out of preformed strips.
Due to the construction, hexagonal mesh has got a very high rigidity that will even last after rolling it into a specific radius.
Because of this excellent rigidity, the material is extremely suitable for armouring.

Hexmesh can be supplied on panels with a standard dimension of
2.000 x 1.000mm., can be cut to customer required dimensions or can be rolled in a specific radius.
Standard our hexmesh is produced in AISI 304H and AISI 410S, but other alloys are available.

Applications of hexagonal mesh are armouring against wearing in cyclone walls and vessels or it can be used as a wall covering in industrial furnaces.

Features:

• HexMesh Refractory: A Hex Steel/Hex Metal Refractory Lining and Hex Metal Mesh.
• Length: 1-2m.
• Thickness: 2mm, 1.9mm, 2.5mm.
• Width: 1-2m.
• Size: Customized.

Hexmetal is a an unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion.

Hexsteel: Bonding Hole Type

Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

Hex-metal: Pronges/Lances Type

this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.

specification:

Common Specification Sheet

Hexsteel Typical Service Temperature:

Applications:

HexMesh Refractory, from ZhongTeng, is a high quality, durable hexagonal mesh product designed for use in refractory applications. The hexagonal mesh is made from a heavy-duty steel and is available in a variety of sizes and thicknesses to meet your project's needs. HexMesh Refractory is available in 2mm, 1.9mm, and 2.5mm thicknesses, and can also be custom-made to suit your project's specifications.

HexMesh Refractory is certified to ISO9001 standards, and is available in a range of colors including silver, to perfectly match your project's look. The mesh can be bent and cut as needed, and is available in minimum order quantities of 30M2, with a price range of 25-89/M2. HexMesh Refractory can be delivered within 10-25 days, with payment terms of TT or LC accepted. The product is packaged in pallets or wooden boxes and is in stock for immediate supply, with a maximum supply capability of 1300/M2.

Customization:

Hexmesh Refractory

Model Number: ZT--010

Place of Origin: China

Certification: ISO9001

Minimum Order Quantity: 30M2

Price: 25-89/M2

Packaging Details: Pallets or Wooden Box

Delivery Time: 10-25 Days

Payment Terms: TT Or LC

Supply Ability: 1300/M2

Mesh: 50X50mm

Product Name: HexMesh Refractory

Material: Low-Carbon Steel Or Stainless Steel

Width: 1-2m

Sample: Sample Availible

Highlighted Points:

Hex Grid

Stainless Steel Hex Mesh For Refractory Lining

Thermostable Hexmesh And Anchor For Lining
