| 재료: | SS304,SS316,SS304L,SS316L,Monel400과 플라스틱 수크헤이스 PP, PVDF,PTFEetc. | 해당되는: | air&oil은 여과합니다 |
|---|---|---|---|
| 용법: | 액체 필터 | 유형: | 필터 엘리멘트, SP, HP, DP, HR |
| 구멍 모양: | 둥근 | 필터 등급: | 99% |
| 두께: | 100-150mm | 이메일: | devin@industrialmetalmesh.com |
| 왓츠앱: | +8615369013183 | ||
| 강조하다: | PP PTFE wire mesh mist eliminator,plastic demister pads with warranty,customizable PTFE wire mesh demister |
||

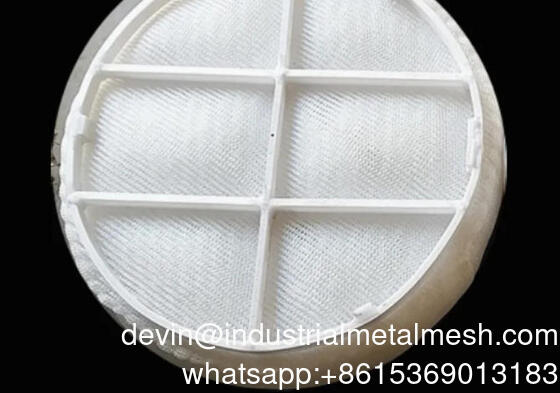

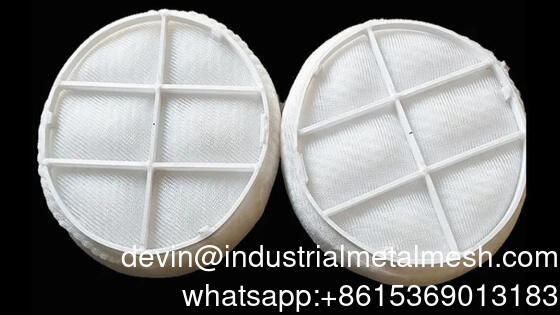

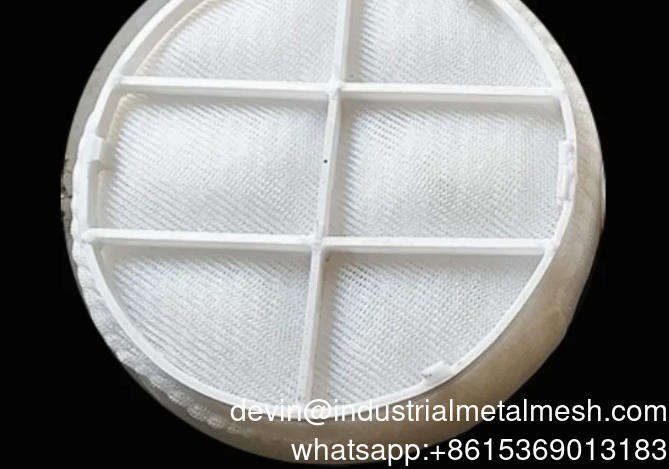

Customize PP PTFE Wire Mesh Mist Eliminator Plastic Demistor Pads
Polypropylene (PP) Mist Eliminator pad is a common type among plastic demister pad. It is made of PP knitted wire mesh and gratings. The PP demister pad can not only used for filtering large liquid foam out, which is suspended in the gas stream, it can also filter out the smaller and tiny liquid foam. The gratings are added onto the wire mesh pad for supporting the demister pad and easy installing. The PP demister pad can ensure the high mass transfer efficiency and reduce the loss of valuable materials. The PP demister pad is widely used for gas and liquid separation in various applications.
| Item | Density (kg/m3) |
Free Volume (%) |
Surface area (m2/m3) |
Domestic Model | Other Companies Model | |||||||
| Metex | York | Becoil | Knitmesh | Vico-tex | Uop | Koch | Acs | |||||
| BS-1 | 80 | 99.0 | 158 | H | Hi-Thtuput | 931 | 954 | 4536 | 160 | B | 511 | 7CA |
| BS-2 | 120 | 98.5 | 210 | L | 422 | |||||||
| BS-3 | 144 | 98.2 | 280 | N | Nu-Standard | 431 | 9030 | 280 | A | 911 | 4CA | |
| BS-4 | 128 | 98.4 | 460 | SN | 326 | 415 | 706 | |||||
| BS-5 | 193 | 97.5 | 375 | SL | Xtra-Dense | 421 | 890 | 9033 | 380 | C | 1211 | 4BA |
| BS-6 | 300 | 96.2 | 575 | SM | ||||||||
| BS-7 | 390 | 95.0 | 750 | SH | ||||||||
| BS-8 | 220 | 97.2 | 905 | T | ||||||||
| BS-9 | 432 | 94.5 | 1780 | R | Multi-Strand | 333 | 800 | |||||
| BS-10 | 220 | 97.2 | 428 | W | Wound | |||||||
| BS-11 | 160 | 96.7 | 5000 | GS | 371 | |||||||
|
Standard Stype
|
||||||
|
Wire diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
(kg/m3)
|
Surface Area
(m2/m3)
|
Void Fraction
|
||
|
Flat Wire
|
Round Wire
|
±10
|
150
|
Flat Wire
|
Round Wire
|
0.981
|
|
0.1*0.4
|
0.23
|
475
|
320
|
|||
|
High Efficiency
|
||||||
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
(kg/m3)
|
Surface Area
(m2/m3)
|
Void Fraction
|
||
|
Flat Wire
|
Round Wire
|
±10
|
182
|
Flat Wire
|
Round Wire
|
0.977
|
|
0.1*0.3
|
0.19
|
626
|
484
|
|||
|
High Penetration
|
||||||
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
(kg/m3)
|
Surface Area(m2/m3)
|
Void Fraction
|
||
|
Flat Wire
|
Round Wire
|
±10
|
98
|
Flat Wire
|
Round Wire
|
0.9875
|
|
0.1*0.4
|
0.23
|
313
|
217
|
|||
1. Low pressure drop. The pressure drop of gas passing through the demister is only 100-400 Pa, which is beneficial for improving the equipment's performance
Work efficiency.
2. Simple structure, low pressure drop, large contact surface area, and acid and alkali resistance
3. High efficiency. For mist with a diameter of 3-5 μ m, the capture rate of the PP defoamer can reach over 97%.
4. Long term use. Using high-quality and environmentally friendly raw materials, with standardized specifications, uniform pore size, uniform structure, without burrs, firm weave, and long-lasting use.
5.Convenient installation, light weight, and convenient maintenance.
