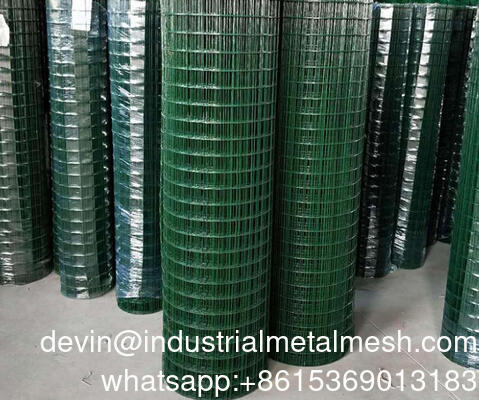

PVC Plastic Coated Welded Galvanised Wire Mesh Iron Wire Mesh

큰 이미지 : PVC Plastic Coated Welded Galvanised Wire Mesh Iron Wire Mesh

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Qijie
인증:	SGS
모델 번호:	QJ-WM

결제 및 배송 조건:

최소 주문 수량:	10 rolls
포장 세부 사항:	팔레트
배달 시간:	15-18days
지불 조건:	TT
공급 능력:	1000개

상세 제품 설명

구멍 모양:	스퀘어, 사각형	Weightpersheet:	와이어 직경 및 시트 크기에 따라 다릅니다.
구멍:	50*75mm 또는 당신의 수요로, 1/4	표준 준수:	ASTM, ISO, BS 표준
두께:	1.3mm	표면 처리:	PVC 코팅
롤 크기:	24	색상:	실버, 그린, 블랙(PVC 코팅용)
강조하다:	PVC coated welded wire mesh , galvanised iron wire mesh , welded galvanised steel mesh

PVC Plastic Coated Welded Galvanised Wire Mesh Iron Wire Mesh

Welded wire mesh (sometimes called welded wire fabric) is a metal mesh constructed with perpendicular wires that fuse together at their intersections using a resistance welding process. The resulting weld points secure the wires in a fixed grid that holds its shape. The lack of movement between wires helps to create a sturdy and durable material that exceeds expectations.

Individual wires welded together become stronger and mo re stable. Welded mesh is more suitable than woven mesh for applications where larger areas are covered. The product is has a smooth, uniformed appearance and even grid pattern.

Specification of Welded Wire Mesh
Opening		Wire Diameter	Width 0.4-2M Length 5-50m	Surface treatment
In inch	In metric unit	Wire Diameter		electric galvanized before welded; electric galvanized after welded; hot-dipped galvanized before welded; hot-dipped galvanized after welded; PVC coated; Stainless steel wire;
1/4" x 1/4"	6.4 x 6.4mm	BWG24-22
3/8" x 3/8"	10.6x 10.6mm	BWG22-19
1/2" x 1/2"	12.7 x 12.7mm	BWG23-16
5/8" x 5/8"	16x 16mm	BWG21-18
3/4" x 3/4"	19.1 x 19.1mm	BWG21-16
1" x 1/2"	25.4x 12.7mm	BWG21-16
1-1/2" x 1-1/2"	38 x 38mm	BWG19-14
1" x 2"	25.4 x 50.8mm	BWG16-14
2" x 2"	50.8 x 50.8mm	BWG15-12
2” x 4"	50.8 x 101.6mm	BWG15-12
4” x 4"	101.6 x 101.6mm	BWG15-12
4” x 6"	101.6 x 152.4mm	BWG15-12
6” x 6"	152.4 x 152.4mm	BWG15-12
6” x 8"	152.4 x 203.2mm	BWG14-12
Note: Special specifications can be made according to customers requires.

PVC Plastic Coated Welded Galvanised Wire Mesh Iron Wire Mesh 0

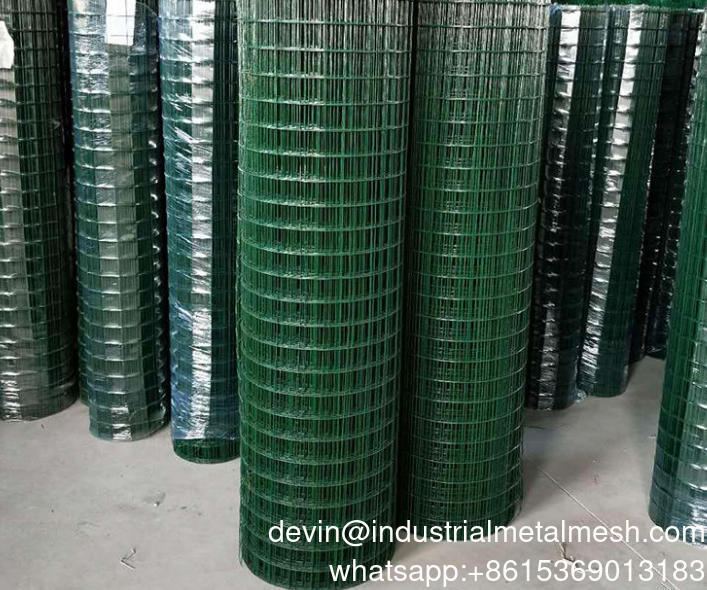

Welded Wire Mesh Roll
Opening (In inch)	In metric unit(mm)	Wire Diameter(BWG)
1/4" x 1/4"	6.4mm x 6.4mm	22, 23, 24
3/8" x 3/8"	10.6mm x 10.6mm	19, 20, 21, 22
1/2" x 1/2"	12.7mm x 12.7mm	16, 17, 18, 19, 20, 21, 22, 23
5/8" x 5/8"	16mm x 16mm	18, 19, 20, 21
3/4" x 3/4"	19.1mm x 19.1mm	16, 17, 18, 19, 20, 21
1" x 1/2"	25.4mm x 12.7mm	16, 17, 18, 19, 20, 21
1-1/2" x 1-1/2"	38mm x 38mm	14, 15, 16, 17, 18, 19
1" x 2"	25.4mm x 50.8mm	14, 15, 16
2" x 2"	50.8mm x 50.8mm	12, 13, 14, 15, 16
Technical Note: 1.Standard roll length: 30m, 50m; width: 0.5m to 2.5m 2.Special sizes available at request. 3.Packing: in waterproof paper in rolls. Custom packing available at request.

PVC Coated Welded Mesh
Opening (In inch)	In metric unit(mm)	Wire Diameter(BWG)
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Technical Note: 1.Standard roll length: 18m, 30m; width: 0.5m to 1.2m. 2.Special sizes available at request. 3.Packing: in waterproof paper in rolls. Custom packing available at request.

PVC Plastic Coated Welded Galvanised Wire Mesh Iron Wire Mesh 1
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.

Function

Welded wire mesh serves a multitude of functional purposes across different industries. In construction, it is used as a reinforcing material for concrete, providing structural strength and preventing cracking. In agriculture, it acts as fencing to enclose livestock, keep out pests, or protect crops, thanks to its sturdy grid that resists impacts and pressure. It also functions as a screening material for windows, doors, or vents, offering security and ventilation simultaneously. Additionally, it can be employed in crafting and DIY projects for creating decorative elements or functional structures like storage baskets. The mesh's uniform openings and welded joints ensure it can withstand tension and pressure, making it a versatile solution for both practical and protective applications.

Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding

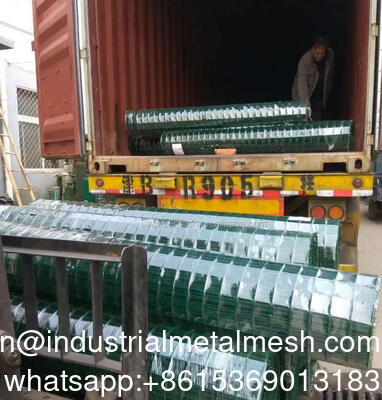

PACKAGE & SHIPPING

Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
