제품 상세 정보:
결제 및 배송 조건:
|
| 용접속도: | 분당 20 - 60회 | 모터 파워: | 11kw |
|---|---|---|---|
| 제품명: | 와이어 메쉬 기계 | 머신 유형: | 자동 와이어 메쉬 용접기 |
| 전압: | 380V | 보증: | 1년 |
| 전원: | 전기 같은 | 전력 공급: | 380V, 50Hz, 3 상 |
| 강조하다: | automatic pneumatic wire mesh machine,steel wire mesh welding machine,industrial wire mesh making machine |
||

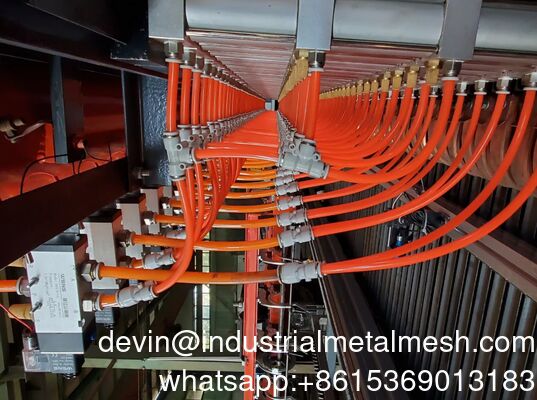

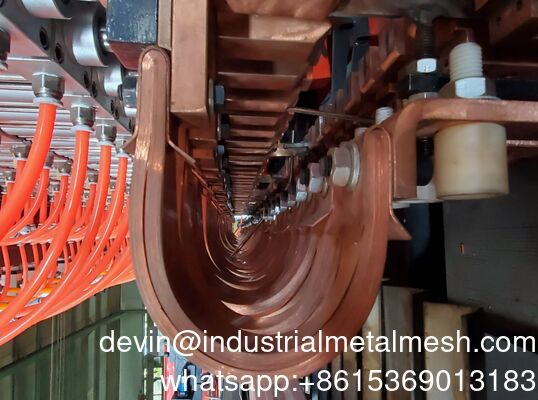

Automatic Pneumatic Mesh Machine Steel Wire Mesh Machine
| Welding wire diameter | Φ5-10mm or customized |
| Maximum width | 2600mm or customized |
| Wire of longitude wire wire | 100-300mm |
| Transformer | 160KVA×12pcs or customized |
| Welding mesh | 50*50-300*300mm |
| Machine size | 5.7X3.2X1.7m |
| Welding speed | 40-70 times / min (related to wire mesh) |
| Main tranformer capacity | 400 KVA |
| Pressure mode | Cylinder pressurization |
| Pneumatic system working pressure: | ≥0.8Mpa |
| Cooling water pressure P | 0.2≤P<0. Mpa |
| Compressed air consumption | ≥3 M3/min |
| Longitudinal feeding | cutting wire manully feeding(straightness ≤3mm/1000mm) distance between the equipment and the power transformer is less than 100m) |
| Horizontal line feeding | cutting wire feeding, automatic wire feeding |
| Dimensions | 22×4.4×2.2 m |
1.The welding speed is fast and the operation is simple and easy to master.
2.The weft matched with the accurate weft cutting device and accurate positioning device, ensures the weft at the same length and without being out
3.The mesh drawing system is controlled by motor which improved the precision of mesh opening size, meanwhile the line wire and the weft wire spacing are adjustable.
4.Pressurization is air cylinder.Continuous work by cooling down with cold water.
