제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 알루미늄, 아연 도금 강선 | 제품 이름: | 통제력 지주 회절격자 |
|---|---|---|---|
| 유형: | 천공 메시, 에칭 또는 스탬핑 | 기술: | 천공된 |
| 직조 스타일: | 퍼포레이티드, 천공된, 펀칭 | 구멍 모양: | 라운드, 다이아몬드, 기타 등등, 8각형인 매화꽃 |
| 표면 처리: | 스프레이 코팅 / 스프레이 도장 / 플루오르카본 코팅이 뜨겁게 직류 전기로 자극된, 직류 전기로 자극되고 플루오로카를 담갔습니다 | 색상: | 모든 컬러 칩은 가지고 있습니다, 금빛인 하얀, 푸른, 은 |
| 제품명: | 6 각형 구멍이 있는 금속 시트, 확장가능한 스다이아드 메쉬 | 두께: | 0.5-8mm,0.3MM- 8MM |
| 특징: | 부식성, 잘 생겼으며 좋은 품질, 내구성, 산성 저항성, 반 저항성 | 너비: | 1m 또는 1.22m,1.22 Ｍ 또는 아래 |
| 용법: | 장식적인 기타 등등, 석유 / 공기 정화 필터, 음식 | 길이: | 2m 또는 2.44m |
| 크기: | 맞춤형 크기, 표준 | 모양: | 일치하고 라운드 또는 스퀘어 형상, 달걀 모양인 라운드 형상, 육각형 안으로 줄여질 수 있습니다 |
| 정점: | 1.0mm-100MM, 또는 요구로서. | 이메일: | devin@industrialmetalmesh.com |
| 왓츠앱: | +8615369013183 | ||
| 강조하다: | galvanized anti-skid grip strut grating,perforated crocodile mouth plate grating,durable walkway grip strut grating |
||

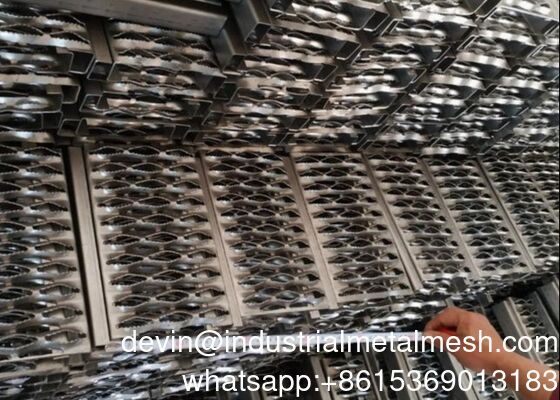

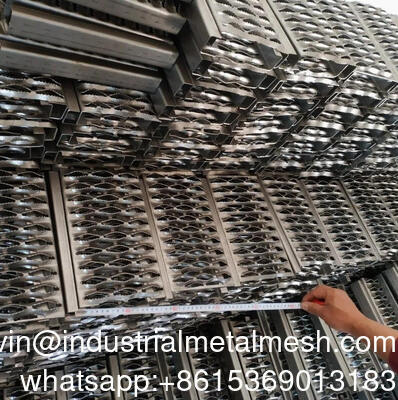

Durable Galvanized Anti-Skid Perforated Crocodile Mouth Plate Grip Strut Grating for Walkway

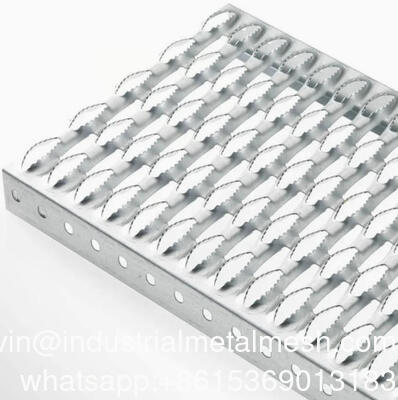

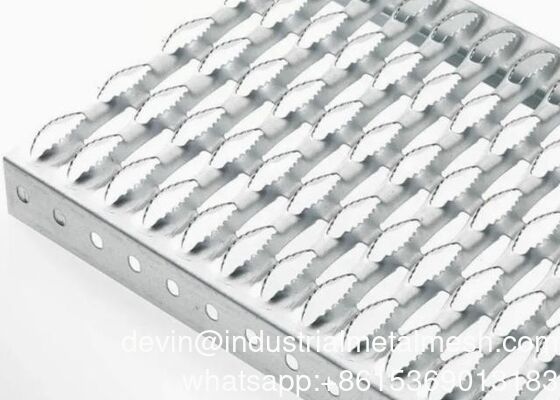

The perforated crocodile mouth grip strut grating is a metal anti-skid plate with a raised tooth-shaped hole structure made of iron plate, stainless steel plate or aluminum plate as the base material through CNC punching technology. Its production process covers shearing, punching and bulging, bending and welding, etc.
The hole shape includes crocodile mouth shape, herringbone shape and round shape, and the serrated edge design effectively improves the anti-slip effect.
The plate thickness can be customized in the range of 1-5mm, and the bending angle is adjusted according to the installation scenario. Common edge treatment methods include flat edge and bent edge.
The product has the characteristics of rust resistance, corrosion resistance, strength and durability. It is widely used in outdoor platforms of industrial facilities such as sewage treatment plants and power plants, as well as vehicle anti-slip pedals, stair treads and other scenarios.
|
Product Name
|
Perforated Grip Strut Grating
|
|
Material
|
Mild Steel, Pre-Galvanised Steel, Aluminium, Stainless Steel, Corten Steel etc.
|
|
Specifications
|
Stainless Steel, Hot Rolled Steel, Cold Rolled Steel, Aluminum plate
|
|
Thickness
|
0.5mm-4mm (additional thickness are available on request)
|
|
Hole Size
|
2mm-50mm (other hole sizes are also available)
|
|
Width
|
Customized
|
|
Length
|
Customized
|
|
Application
|
Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical, slip resistant options for long span walkways.
|
|
Note
|
Perforations must be the same or larger in size than the material thickness.
|
Grip struct perforated steel grating
Diamond Grip Strut Safety Plank Grating provides a maximum safety and slip resistant option against mud, ice, snow, grease, oil or detergents on plank, walkways, catwalks, stairs, etc. The plank grating is usually made of lightweight Low carbon steel Q235, pre-galvanized steel plate, Stainless steel 304 or 316, go througn cutting the right size easily, punching the serrated diamond hole, and bending into depth as your required.
The grip strut plank grating includes regular and heavy duty types, which can be 10' or 12' lengths and 4.75'' to 24'', diamonds
of ,channel heights of , metal wall thick of 12 & 14 ga. Pre-Galvanized and Plain Steel, 10 & 12 ga. 5052-H32 Aluminum, 16 ga.Stainless Steel 304 and 316 ,Widths 4-3/4'', 7'', 9-1/2'', 11-3/4'', 18-3/4'', 24'' , Heights 1-1/2'', 2'', 2-1/2'',3''Lengths,or cut to size, with necessary accessories of splice plates, anchor plates, diamond washer bolt kits.
| Item No. | Item Description | Standard Width | Standard Channel Depth | Standard Length |
| 1 | 2-Diamond Plank | 4.75'' (120.65mm) |
1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm) |
10' and 12' (3048mm and 3657.6mm) |
| 2 | 3-Diamond Plank |
7'' (120.65mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 3 | 4-Diamond Plank |
9.5'' (241.3mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 4 | 5-Diamond Plank |
11.75'' (298.45mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 5 | 8-Diamond Plank |
18.75'' (476.25mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 6 | 10-Diamond Plank |
24'' (609.6mm) |
2'' and 3'' (50.8mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 7 | 10-Diamond Walkway |
24'' (609.6mm) |
4.5'' (114.3mm) |
10' and 12' (3048mm and 3657.6mm) |
