| 재료: | 스테인레스 스틸 와이어 | 유형: | 로프 메쉬, 페룰형 또는 맺은 타입 |
|---|---|---|---|
| 어플리케이션: | 메쉬 보호 | 직조 스타일: | 평범한 직조 |
| 기술: | 직물 | 모델 번호: | 철연선 메쉬 |
| 가공 서비스: | 짜다 | 원료: | 스테인레스 강 304 316, 아연 도금선 |
| 부속품: | 모두는 제공될 수 있습니다 | 이메일: | devin@industrialmetalmesh.com |
| 왓츠앱: | +8615369013183 | ||
| 강조하다: | stainless steel wire rope mesh,flexible metal wire net for zoo,soft stainless steel rope mesh |
||

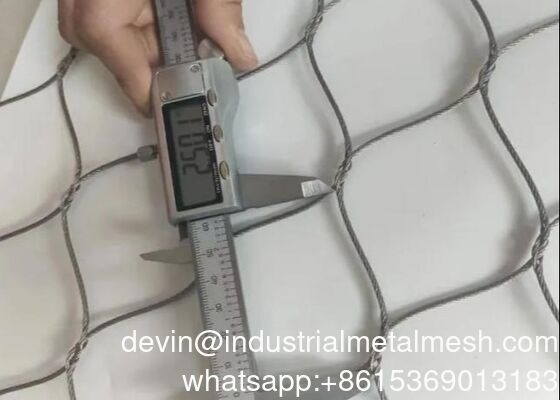

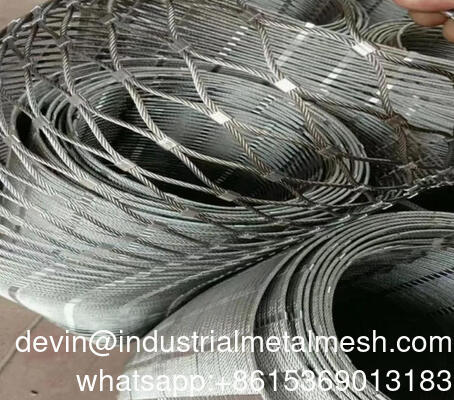

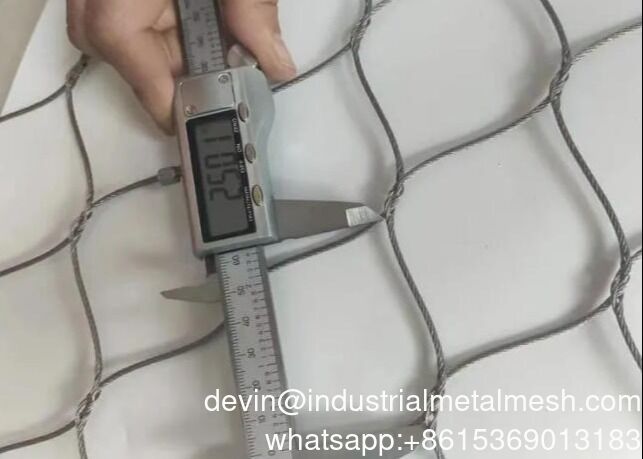

Soft Flexible Stainless Steel Metal Wire Rope Net Mesh for Zoo
WIRE ROPE MESH (also called cable mesh) made form high quality stainless steel wire rope, with the features of extremely anti-corrosion , has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects.
We have over 10 years of experience in producing stainless steel rope woven aviary mesh. We can customize stainless steel rope mesh with various wire diameters and mesh holes according to your needs, which can be used in fields such as zoo fences, plant green wall nets, railing guardrails, anti fall nets, metal mesh bags, etc.
Stainless steel wire rope mesh is available in 304/304L 316/316L universal stainless steel.
| Difference of stainless steel materials | |||||||||
| Steel Grade | C | Si | Mn | P | S | Cr | Ni | Mo | others |
| 304 | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.030 | 18.0-20.0 | 8.0-12.0 | --- | |
| 304L | ≤0.03 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.030 | 18.0-20.0 | 8.0-12.0 | --- | |
| 316 | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.030 | 16.0-18.0 | 10.0-14.0 | 2-3 | --- |
| 316 | ≤0.03 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.030 | 16.0-18.0 | 10.0-14.0 | 2-3 | --- |
>Stainless steel wire rope mesh types
1> Stainless steel cable woven mesh(stainless steel sleeveless wire rope mesh).
2>Stainless steel cable ferrule mesh(stainless steel sleeved wire rope mesh).
| Wire Rope Structure | Min Breaking Load (KN) | Wire Rope Diameter | Mesh Size | Application |
| 7x19 | 7.38 | 3.2 | 51x51,60x60,76x76,90x90,102x102,120x120,152x152 | Large and fierce animals like tiger,lion,leopard, orangutan |
| 7x7 | 4.18 | 2.4 | 51x51,60x60,76x76,90x90,102x102,127x127,152x152 | Large and fierce animals like tiger,lion,leopard, orangutan,monkey |
| 7x7 | 3.17 | 2.0 | 38x38,51x51,60x60,76x76 |
small cat animals like monkey |
| 7x7 | 2.17 | 1.6 | 25.4x25.4,30x30,38x38,51x51,60x60,76x76 | Large birads small birads |
| 7x7 | 1.22 | 1.2 | 20x20,25.4x25.4,30x30,38x38,51x51,60x60,76x76 |
Large birads small birads avary |
