| 화학 성분: | Fe, Ｃ, Si, Mn, Ｓ, Ｐ | 합금 여부: | 비 합금 |
|---|---|---|---|
| 프로젝트 솔루션 역량: | 그래픽 디자인, 3D 모델 디자인, 프로젝트 토탈 솔루션 | 어플리케이션: | 별장 |
| 표면 처리: | 페인트를 칠하거나 미처리하는 열침 아연 도금 | 그레이트 길이: | 1000mm |
| 그레이트 폭: | 800mm | 지탱 봉 폭 Ｘ 두께: | 25x3mm |
| 지탱 봉 형태: | 평범하고 톱니 모양이 내가 타입 스타일 스틸 그레이팅을 방해합니다 | 크로스 바 형태: | 휘어져 바 형상을 둥글게 하세요 |
| 메쉬 크기: | 30x100mm | 이메일: | devin@industrialmetalmesh.com |
| 왓츠앱: | +8615369013183 | ||
| 강조하다: | galvanized steel grating wear resistance,steel grating withstands heavy friction,durable galvanized steel grating |
||

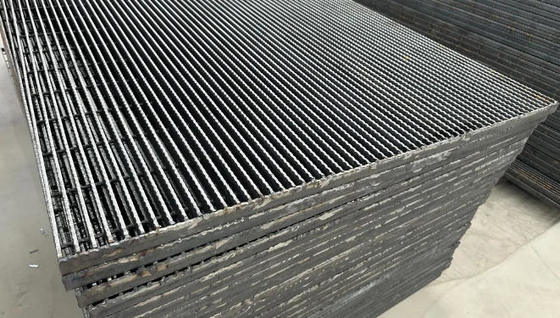

Strong Wear Resistance Galvanized Steel Grating Can Withstand Greater Wear And Friction
Steel grating typically consists of parallel and perpendicular steel bars, with the perpendicular bars welded or locked into place by various methods such as welding, riveting, or swaging. The design of the grating allows for the passage of air, light, and liquids while providing structural support.
Steel grating is extensively used for industrial flooring in factories, warehouses, manufacturing facilities, and industrial plants. Its robust construction provides a stable and safe walking surface for workers while allowing ventilation, drainage, and the passage of light and air.
|
Production name
|
Steel grating
|
|
Material
|
Carbon steel, Stainless steel, Aluminum
|
|
Surface treatment
|
Hot dipped galvanized, Spray-painting, Polished and powder coated
|
|
Bearing Bar type
|
Flat bar, Serrated bar, I-bar, inserting steel grating etc
|
|
Beaing bar size
|
20*3mm, 25*3mm, 30*3mm, 32*3mm, 40*3mm, 50*3mm, 60*3mm, 70*3mm
20*4mm, 25*4mm, 30*4mm, 32*4mm, 40*4mm, 50*4mm, 60*4mm, 70*4mm
20*5mm, 25*5mm, 30*5mm, 32*5mm, 40*5mm, 50*5mm, 60*5mm, 70*5mm
|
|
Mesh size
|
30*100mm, 40*100mm, 50*100mm,
30*50mm, 40*50mm, 50*50mm,
30*30mm, 34*38mm
|
|
Use to
|
flooring, catwalk, decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.
|
metal walking grates introduction-- galvanized road drainage grates
| Bearing bar type | Flat bar | I bar | Serrated bar | |
| Cross bar type | Twisted bar | Round bar | flat bar | |
| Production process | welded | Pressure locked | ||
| Surface treatment | Self-colour | Galvanized | painted | |
| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted
steel grating standard-- galvanized road drainage grates
| Steel Grating Standard | |||
| Steel Grating Standard | Steel Standard | Galvanizing Standard | |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
