| 원산지 :: | 헤베이, 중국 | 재료:: | 스테인리스 스틸 와이어 |
|---|---|---|---|
| 유형:: | 짜는 로프 메쉬가 버클로 조여집니다 | 애플리케이션:: | 구축되는 방지 메쉬, 장식적, 동물원, 교량 난간 |
| 제직물 방식 :: | 평직/능직물/네덜란드 직조 | 기술 :: | 직물 |
| 색상:: | 검거나 맞춘 은 | 개구 사이즈 :: | 20x20mm,25x25mm,30x30mm,38x38mm,50x50mm 기타 등등 |
| 이메일: | devin@industrialmetalmesh.com | whatsapp: | +8615369013183 |
| 강조하다: | stainless steel ferrule rope mesh,rigid stainless steel wire mesh,flexible durable rope mesh |
||

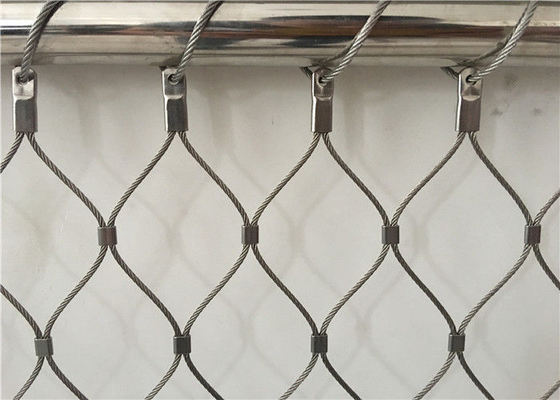

Stainless Steel Ferrule Rope Mesh – Aesthetic, Rigid, Flexible & Durable
Wire rope ferrule mesh, also known as cable ferrule mesh or stainless steel ferrule rope mesh, is made of 304, 304L, 316 or 316L stainless steel materials. It combines both flexibility and stability and has a high strength-to-weight ratio, which fully reflects the super-toughness and plasticity of austenitic stainless steel.
As a new product in architectural decoration and protection, wire rope ferrule mesh adds a new fashionable element to modern architectural decoration and is increasingly favored by designers and clients around the world.
We have rich production and design experience, and provide various diameter options and flexible mesh aperture size solutions. Our products are widely used in public balustrades, zoo animal enclosures, bird netting, safety fences, green planting systems, etc.
Each of our products undergoes stringent inspections before leaving the factory to ensure their compliance with AISI 304, 316, 316L, and ISO/TS 15510:2003 standards.
| Type | C (%) | Si (%) | Mn (%) | Cr (%) | Ni (%) | S (%) | P (%) |
|---|---|---|---|---|---|---|---|
| 304 | ≤ 0.07 | ≤ 1.0 | ≤ 2.0 | 17.0–19.0 | 8.0–11.0 | ≤ 0.03 | ≤ 0.035 |
| 304L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 17.0–19.0 | 8.0–12.0 | ≤ 0.03 | ≤ 0.035 |
| 316 | ≤ 0.08 | ≤ 1.0 | ≤ 2.0 | 16.0–18.5 | 10.0–14.0 | ≤ 0.03 | ≤ 0.035 |
| 316L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 16.0–18.0 | 12.0–15.0 | ≤ 0.03 | ≤ 0.045 |
When the application requires high resistance to chloride ion corrosion and heat, 316 stainless steel is preferred. That's because 316 stainless steel contains the element molybdenum (Mo), which forms a denser and more stable passive film on the metal surface, thus effectively enhancing the stainless steel's resistance to chloride ion corrosion.
Specifications
| Model | Wire Rope Structure | Wire Rope Diameter (D) | Mesh Aperture (M) | Minimum Breaking Force | ||
|---|---|---|---|---|---|---|
| inch | mm | inch | mm | (kN) | ||
| AG-4076F | 7 × 19 | 5/32" | 4.0 | 3" × 3" | 76 × 76 | 10.7 |
| AG-4090F | 7 × 19 | 5/32" | 4.0 | 3.6" × 3.6" | 90 × 90 | 10.7 |
| AG-40102F | 7 × 19 | 5/32" | 4.0 | 4" × 4" | 102 × 102 | 10.7 |
| AG-40127F | 7 × 19 | 5/32" | 4.0 | 5" × 5" | 127 × 127 | 10.7 |
| AG-40152F | 7 × 19 | 5/32" | 4.0 | 6" × 6" | 152 × 152 | 10.7 |
| AG-40203F | 7 × 19 | 5/32" | 4.0 | 8" × 8" | 203 × 203 | 10.7 |
| AG-32152F | 7 × 19 | 1/8" | 3.2 | 6" × 6" | 152 × 152 | 7.38 |
| AG-32127F | 7 × 19 | 1/8" | 3.2 | 5" × 5" | 127 × 127 | 7.38 |
| AG-32120F | 7 × 19 | 1/8" | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| AG-32102F | 7 × 19 | 1/8" | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| AG-3290F | 7 × 19 | 1/8" | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| AG-3276F | 7 × 19 | 1/8" | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| AG-3260F | 7 × 19 | 1/8" | 3.2 | 2.4" × 2.4" | 60 × 60 | 7.38 |
| AG-3251F | 7 × 19 | 1/8" | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| AG-24152F | 7 × 7 | 3/32" | 2.4 | 6" × 6" | 152 × 152 | 4.18 |
| AG-24127F | 7 × 7 | 3/32" | 2.4 | 5" × 5" | 127 × 127 | 4.18 |
| AG-24102F | 7 × 7 | 3/32" | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| AG-2490F | 7 × 7 | 3/32" | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| AG-2476F | 7 × 7 | 3/32" | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| AG-2460F | 7 × 7 | 3/32" | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| AG-2451F | 7 × 7 | 3/32" | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| AG-2076F | 7 × 7 | 5/64" | 2.0 | 3" × 3" | 76 × 76 | 3.17 |
| AG-2060F | 7 × 7 | 5/64" | 2.0 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| AG-2051F | 7 × 7 | 5/64" | 2.0 | 2" × 2" | 51 × 51 | 3.17 |
| AG-2038F | 7 × 7 | 5/64" | 2.0 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| AG-16102F | 7 × 7 | 1/16" | 1.6 | 4" × 4" | 102 × 102 | 2.17 |
| AG-1676F | 7 × 7 | 1/16" | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| AG-1660F | 7 × 7 | 1/16" | 1.6 | 2.4" × 2.4" | 60 × 60 | 2.17 |
| AG-1651F | 7 × 7 | 1/16" | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| AG-1638F | 7 × 7 | 1/16" | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| AG-1630F | 7 × 7 | 1/16" | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| AG-1625F | 7 × 7 | 1/16" | 1.6 | 1" × 1" | 25.4 × 25.4 | 2.17 |
| AG-12102F | 7 × 7 | 3/64" | 1.2 | 4" × 4" | 102 × 102 | 1.22 |
| AG-1276F | 7 × 7 | 3/64" | 1.2 | 3" × 3" | 76 × 76 | 1.22 |
| AG-1251F | 7 × 7 | 3/64" | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| AG-1238F | 7 × 7 | 3/64" | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| AG-1230F | 7 × 7 | 3/64" | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| AG-1225F | 7 × 7 | 3/64" | 1.2 | 1" × 1" | 25.4 × 25.4 | 1.22 |
| AG-1220F | 7 × 7 | 3/64" | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |
