제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 통조림 구리 와이어 | 너비: | 60mm |
|---|---|---|---|
| 강조하다: | tinned copper cable shielding mesh,cable wrapping shielding mesh,metal wire mesh for cable protection |
||

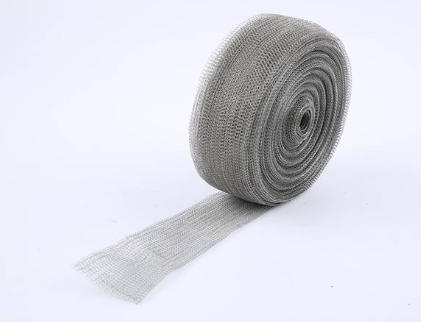

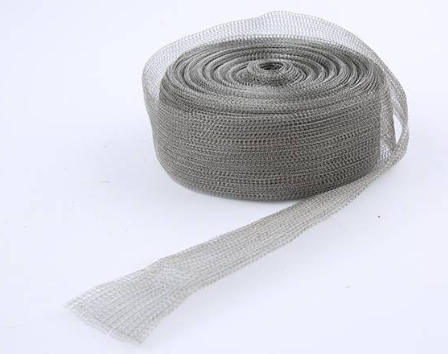

Tinned Copper Cable Shielding Mesh – Cable Wrapping For Shielding And Protecting
Cable shielding mesh is an all-metal, tinned copper shielding mesh in knitted structure. Extremely fine tinned copper wires are knitted into a cylinder mesh providing excellent flexibility.
The interlocking structure is stable and easily elongates to be compatible with power cable insulation.
It is regard as a cost effective shielding solutions. It is wrapped around cables harness for EMI and ESD suppression.
Cable shielding mesh is available in various widths, thicknesses and lengths. You can choose as your request or tell us your application and then we will recommend it for you.
Material options
Tinned copper shielding mesh
Width & length options
| Item | Dimensions : mm(inch) | ||
|---|---|---|---|
| W | Length | t | |
| BCSM-17 | 17.0 (0.670) | 300 | 0.4 |
| BCSM-25 | 25.0 (1.000) | 200 | |
| BCSM-30 | 30.0 (1.180) | 150 | |
| BCSM-35 | 35.0 (1.378) | 100 | |
| BCSM-40 | 40.0 (1.574) | 100 | |
| BCSM-55 | 55.0 (2.165) | 50 | 0.8 |
| BCSM-85 | 85.0 (3.346) | 25 | |
| BCSM-95 | 95.0 (3.740) | 25 | |
| BCSM-120 | 120.0 (4.724) | 25 | |
| BCSM-150 | 150.0 (6.000) | 25 | |
| BCSM-175 | 175.0 (7.000) | 25 | |
| BCSM-230 | 230.0 (8.661) | 25 | |
Features
Applications
