제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 알루미늄, 아연 도금 강선 | 제품 이름: | 통제력 지주 회절격자 |
|---|---|---|---|
| 유형: | 천공 메시, 에칭 또는 스탬핑 | 기술: | 천공 |
| 직조 스타일: | 퍼포레이티드, 천공된, 펀칭 | 구멍 모양: | 라운드, 다이아몬드, 기타 등등, 8각형인 매화꽃 |
| 표면 처리: | 스프레이 코팅 / 스프레이 도장 / 플루오르카본 코팅이 뜨겁게 직류 전기로 자극된, 직류 전기로 자극되고 플루오로카를 담갔습니다 | 색상: | 모든 컬러 칩은 가지고 있습니다, 금빛인 하얀, 푸른, 은 |
| 제품 이름: | 6 각형 구멍이 있는 금속 시트, 확장가능한 스다이아드 메쉬 | 두께: | 0.5-8mm,0.3MM- 8MM |
| 특징: | 부식성, 잘 생겼으며 좋은 품질, 내구성, 산성 저항성, 반 저항성 | 너비: | 1m 또는 1.22m,1.22 Ｍ 또는 아래 |
| 용법: | 장식적인 기타 등등, 석유 / 공기 정화 필터, 음식 | 길이: | 2m 또는 2.44m |
| 크기: | 맞춤형 크기, 표준 | 모양: | 일치하고 라운드 또는 스퀘어 형상, 달걀 모양인 라운드 형상, 육각형 안으로 줄여질 수 있습니다 |
| 정점: | 1.0mm-100MM, 또는 요구로서. | 이메일: | devin@industrialmetalmesh.com |
| whatsapp: | +8615369013183 | ||
| 강조하다: | Grip Strut safety grating 12 gauge,5-diamond plank grating 2-1/2 depth,Grip Strut diamond grating with warranty |
||

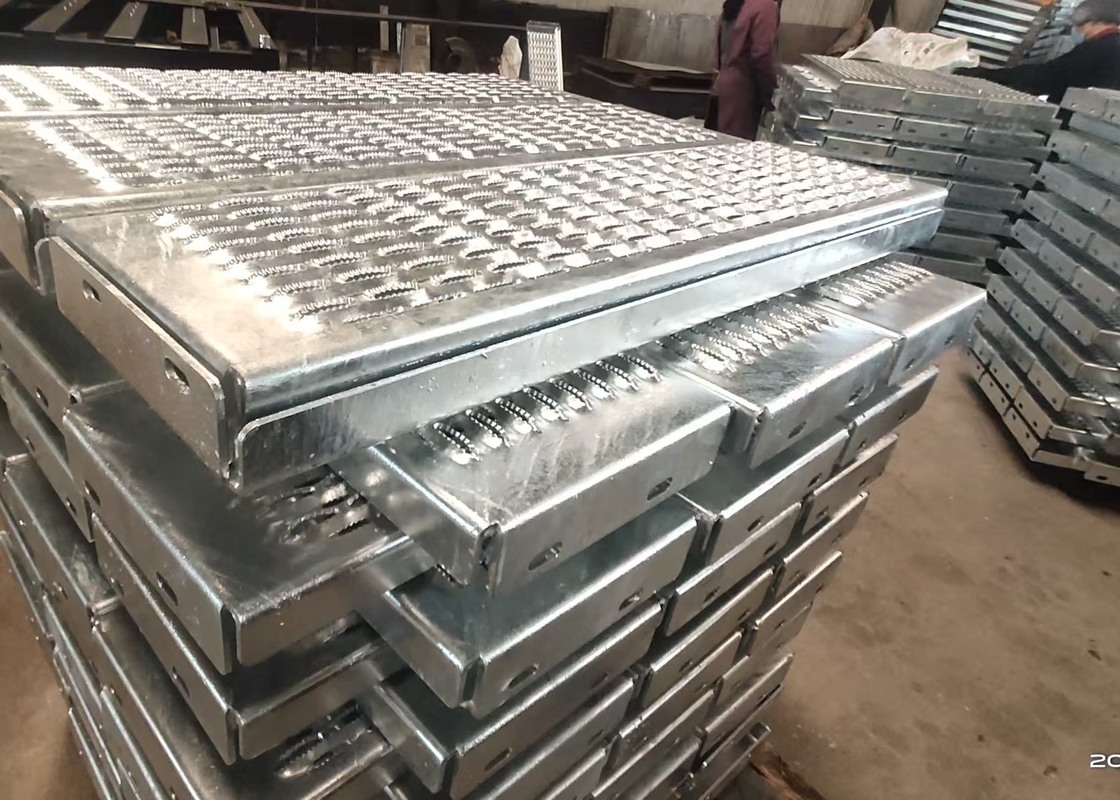

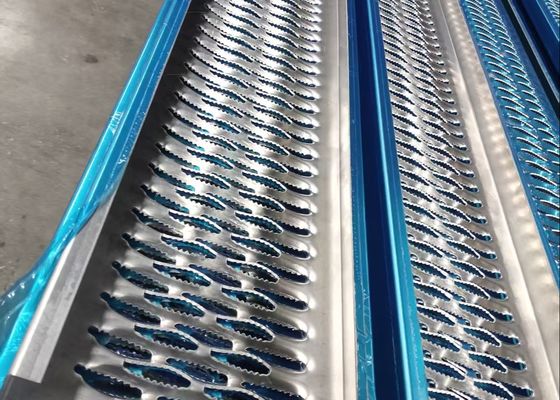

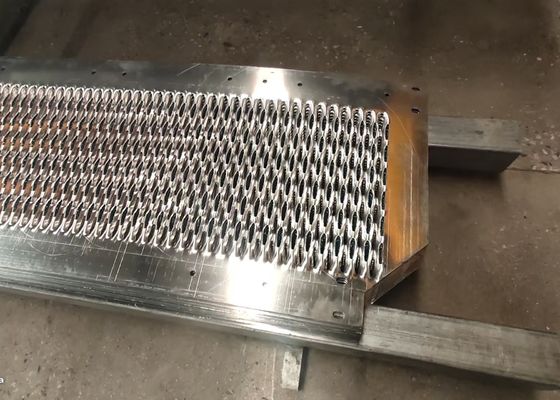

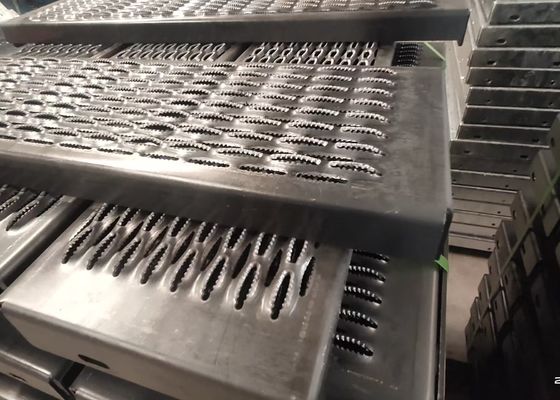

Grip Strut Safety Grating 5-Diamond Plank (2-1/2” Depth, 12 Gauge, 11-3/4" Width) - 52512 Galvanized
Grip Strut Safety Grating plank is an excellent slip resistant material that is low in material cost, as well as installation cost. This planking, at 2-1/2" deep x 12 gauge and 11-3/4" wide (5 diamond), provides maintenance-free open design for drainage of fluids, chips, grease, mud and snow. The serrated surface grips soles securely-in all directions-in practically every place. High strength-to-weight performance is achieved through depth of section and structural design. Light and easy to handle, this helps in quick installation, that usually can be handled by one person. Available in pre-galvanized and hot rolled pickled and oiled (HRPO). Standard lengths are 10' and 12', with the ability to run up to 24' on certain sizes. Please check with your P&R representative for more information.
Grtp Strut Grating Plank,Diamond Safety Grating Walkway,Diamond Safety Grating Stair Treads,Anti-skid Stair Treads,
Traction Tread Safety Grating Plank,Perforated Safety Grating,Stable Tread Safety Grating,Interlock Safety Grating Plank,
This product has passed ISO9001 international quality system certification.
specification about anti-skid perforated panel/antiskid plate :
Materials: Aluminum Alloy Plate, Staniless Steel Plate, Carbon Steel Plate, etc.
Surface: SS, hot dipped galvanized, electro-galvanized.
Shaped hole: alligator mouth hole, round, drum-type and so on
Thickness: 0.8mm-6.0mm
Width: 0.3m-1.5m
Length: 1m-6.5m
Production process of crocodile mouth skid plate: Generally, shearing bending-welding-forming according to different
purposes (iron plate can be used for hot-dip galvanizing and anti-rust treatment) This product has good anti-slip effect, long
service life and beautiful appearance. Characteristics
Perforated Diamond Metal Grtp Strut GratingSpecification
Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463
Other standards: can be produced according to customer's standard
| 2 Diamond / 9-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 2 Diamonds | 9-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 9-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 3 Diamond / 13-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 3 Diamonds | 13-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 13-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 5 Diamond / 23-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 5 Diamonds | 23-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 23-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 6 Diamond / 27-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 6 Diamonds | 27-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 27-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 8 Diamond / 36" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 8 Diamonds | 36" | 1-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 36" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
Applications of Grip Strut Plank
Grip Strut Plank can be made out of iron plate, aluminium plate or stainless steel plate, etc, based upon different working environments. If iron plate is used, when grip strut plank is ready, it can be electro-galvanized, hot dip galvanized or spray-painted. Grip strut plank has nicer skid resistance and beautiful look, so it is widely used as stair tread, walkway and workshop floor in factories and transportation facilities, etc. When grip strut plank is covered with mud, ice, snow, grease, oily soil or cleaning media, grip strut plank can efficiently safeguard the safety of operating personnel.
Characteristics of the perforated Grtp Strut Grating:
With non-slip, anti-rust, anti-corrosion, durable features and beautiful appearance. Punching hole type with raised herring
bone, raised crosswise, round, crocodilelips type, tear-type. These hole types are all CNC punching holes.
Advantages of grip strut grating
Economical to install In addition to low material cost and nominal erection cost, Grip Strut safety grating also helps save with its long-lasting, rust-resisting materials and finishes.
• Standard mill-galvanized finish resists corrosion to help provide lasting surfaces.
• High-strength aluminum and Types 304 and 316L stainless steel help provide maximum corrosion resistance.
• Black unpainted steel available for installations requiring hot dipped galvanized finish after fabrication.
• These light weight yet brawny panels permit substantial reduction in structural steel requirements.
Feature advance:
1, low cost, zinc plate is cheaper compare to after hot dipped galvanized
2, easy install, but need think about carrying capacity
3, anti-skid effect is best, there are 14 teeth around one hole, getting hold of the shoes sole when you stand in walkway.
4, low maintain cost.
|
|
|
|
|
|
