제품 상세 정보:
결제 및 배송 조건:
|
| 와이어 직경: | 2 밀리미터 | 메쉬 개방: | 1/2 Ｘ 1/2 |
|---|---|---|---|
| 크기: | 폭 1.20m x 길이 100m | 이름: | 텅스텐 와이어 메쉬 천 |
| 와이어 재료:: | 스테인리스강 와이어 | 전반적 사용 :: | 내 방에서 스크린 |
| 생산품명: | 녹는 층과 여과기를 위한 30 m 길이 알루미늄 합금 길쌈된 철망사 | ||
| 강조하다: | 0.5 미크론 텅프스텐 와이어 메쉬,300마이크론 텅스텐 와이어 메쉬,990.9% 순수한 텅프스텐 와이어 맷 |
||

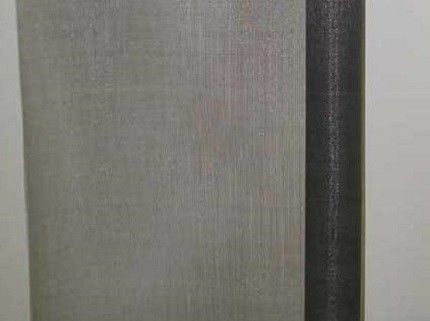

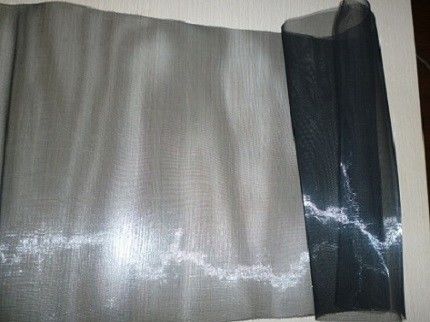

0.5 Micron To 300 Micron 99.9% Pure Tungsten Wire Mesh
Tungsten wire mesh is special due to the metal used. With purity more than 99.9% Tungsten is a greyish white refractory metal, has the highest tensile strength among all metals. The metal has the highest melting point and the lowest vapor pressure. Tungsten is extracted from ores, crushed to become powdery and thereafter mixed and molded to create the wire mesh.
Features of Tungsten Wire Mesh:
Tungsten wire mesh surface is smooth, greaseless and no broken wire. Tungsten wire is with stable nature, large resistance, high melting point, resistance to high temperature of 3400 degrees. Tungsten wire mesh can ba widely used in various mechanical, electrical, air conditioner, filter, vacuum equipment, heating and special purposes.
Applications of Tungsten Wire Mesh:
Electromagnetic shielding mesh, vacuum heat treatment furnace grate, RF electromagnetic shielding, light filtering. Tungsten wire mesh is high temperature resistant and often used as vacuum furnace tungsten mesh heating element, heat treatment supporting wire mesh.
Features:
1. Highest melting point – over 1650C at high temperature
2. Melting point of 3410C
3. Low vapor pressures at high temperature
4. Electrical and thermal conductivity
5. Low coefficient thermal expansion
6. High density
7. High tensile strength at extreme temperature
Specifications:
| Mesh Count | Wire Diameter(mm) | Aperture(mm) | Max Width(m) |
| 10 | 0.60 | 1.94 | 1.60 |
| 20 | 0.40 | 0.87 | 1.60 |
| 30 | 0.30 | 0.55 | 1.60 |
| 40 | 0.23 | 0.40 | 1.60 |
| 50 | 0.20 | 0.31 | 1.60 |
| 60 | 0.15 | 0.27 | 1.60 |
| 70 | 0.12 | 0.24 | 1.60 |
| 80 | 0.13 | 0.19 | 1.60 |
| 90 | 0.12 | 0.16 | 1.60 |
| 100 | 0.10 | 0.15 | 1.60 |
| 120 | 0.09 | 0.12 | 1.60 |
| 150 | 0.063 | 0.11 | 1.60 |
| 180 | 0.053 | 0.01 | 1.60 |
| 200 | 0.053 | 0.07 | 1.60 |
Note: Special size and specifications can be made according to customers requires.
Technology:
Material: Bright pure tungsten wire, tungsten content ≧99.95%, black pure tungsten wire
Mesh Count: 2-200MESH
Features of Tungsten Wire Mesh:
Tungsten wire mesh surface is smooth, greaseless and no broken wire. Tungsten wire is with stable nature, large resistance, high melting point, resistance to high temperature of 3400 degrees. Tungsten wire mesh can ba widely used in various mechanical, electrical, air conditioner, filter, vacuum equipment, heating and special purposes.
Applications of Tungsten Wire Mesh:
Electromagnetic shielding mesh, vacuum heat treatment furnace grate, RF electromagnetic shielding, light filtering. Tungsten wire mesh is high temperature resistant and often used as vacuum furnace tungsten mesh heating element, heat treatment supporting wire mesh.
